High‑brightness industrial displays solve one critical problem—visibility in direct sunlight—but they introduce another challenge that’s just as important: heat. As brightness increases, so does power draw, and without thoughtful engineering, excess heat can compromise performance, shorten component life, or cause outright failure.
For applications that rely on a sunlight readable monitor in sealed enclosures, outdoor housings, or harsh industrial environments, thermal management isn’t an afterthought; it’s part of the core design. Engineers must carefully balance brightness, efficiency, and durability to ensure long-term reliability, especially in systems where airflow is limited or nonexistent.
Below, we explore why overheating occurs in high‑NIT displays, the engineering strategies used to manage thermal load, and how proper thermal design enables high brightness monitors to perform reliably in demanding real-world conditions.
Why High‑Brightness Displays Generate More Heat
A high brightness monitor must generate significantly more light output than a standard commercial display to remain legible in direct or ambient sunlight. This is especially true for daylight readable monitors deployed outdoors, in vehicle‑mounted systems, or within industrial control stations exposed to fluctuating environmental conditions.
Achieving higher brightness levels requires increased electrical power to drive the backlight. While part of that energy becomes visible light, a substantial portion is converted into heat. As brightness increases, thermal load rises proportionally, often dramatically.
The challenge becomes even more pronounced when displays are installed in sealed or fanless enclosures. Without airflow to carry heat away, internal temperatures can climb quickly if the system is not engineered correctly.
When thermal design is insufficient, excessive heat can lead to:
- Reduced backlight efficiency and uneven brightness
- Color shift or contrast degradation over time
- Accelerated aging of LEDs, power supplies, and internal electronics
- Unexpected throttling, shutdowns, or premature system failure
For mission‑critical environments, these risks are unacceptable as they can disrupt operations and increase the total cost of ownership.
Backlight Design: The Primary Source of Thermal Load
At the heart of every high‑NIT display is its backlight system, which is also the primary source of heat generation. Producing the luminance required for a sunlight readable monitor typically involves dense LED arrays driven at higher power levels than those found in standard displays.
As LED density and drive current increase, so does thermal stress. If heat is not distributed evenly across the backlight assembly, localized hot spots can form, accelerating degradation and reducing overall brightness uniformity. Over time, this uneven thermal behavior can shorten backlight lifespan and lead to inconsistent visual performance.
Effective backlight design accounts for both optical output and thermal behavior. Engineers must balance LED efficiency, spacing, and drive methods to achieve high brightness while maintaining manageable operating temperatures. In daylight readable monitors intended for continuous operation, thoughtful backlight engineering is just as critical as enclosure design or mounting configuration.
Passive Cooling: Engineering Without Moving Parts
In many industrial and outdoor deployments, active cooling methods such as fans are impractical or undesirable. Dust, moisture, vibration, and long maintenance intervals make moving parts a potential point of failure. As a result, passive cooling becomes the preferred approach for managing heat in high-NIT displays.
Passive cooling relies on conduction and radiation rather than airflow. Heat is transferred away from internal components and dispersed through the display’s structure and enclosure. Effective passive cooling requires careful coordination between mechanical, electrical, and thermal design disciplines.
Key considerations include:
- Thermally conductive chassis materials that draw heat away from internal components (backlights and power electronics)
- Internal component placement that prevents heat from concentrating in localized hot spots
- Sealed designs that maintain environmental protection while still allowing heat to dissipate through the enclosure
By eliminating fans, displays gain improved reliability, reduced maintenance requirements, and greater resistance to harsh operating conditions—all while maintaining stable thermal performance.
Heat Sinks: Increasing Surface Area for Thermal Dissipation
Heat sinks play a central role in any sunlight readable monitor operating at elevated brightness levels. Their purpose is to increase surface area, allowing heat to move away from sensitive components and dissipate into the surrounding environment more efficiently.
Rather than serving as an add-on, heat sinks must be integrated into the overall mechanical design of the display. Their size, shape, and placement are influenced by multiple factors, including:
- Required brightness levels and NIT output
- Power consumption of the backlight and supporting electronics
- Enclosure type, mounting orientation, and available external surface area
- Expected ambient temperature range
When properly engineered, heat sinks help maintain consistent internal temperatures even as brightness levels increase. This is especially important for daylight readable monitors deployed in outdoor or sealed environments where ambient heat can compound internal thermal load.
Smart Power Design: Reducing Heat at the Source
Thermal management isn’t only about removing heat. It’s also about minimizing how much heat is generated in the first place. Intelligent power design plays a critical role in improving the efficiency of high brightness monitors.
Power-efficient architectures are designed to deliver required luminance without unnecessary overhead. This includes:
- Optimizing voltage and current delivery to backlights
- Preventing thermal spikes during brightness changes
- Maintaining stable performance across varying input power conditions
By reducing wasted energy, smart power design lowers overall thermal stress on backlights and internal electronics. Over time, this contributes to improved reliability, longer component lifespan, and more predictable performance in continuous-operation environments.
Designing for Thermal Margin, Not Just Maximum Brightness
Engineering a high‑NIT display is not simply about achieving the highest possible brightness on a specification sheet. Long‑term reliability depends on designing systems that operate comfortably within thermal limits rather than at the edge of them.
Thermal margin refers to the buffer between normal operating temperatures and maximum rated limits. Displays designed with sufficient thermal margin are better equipped to handle real‑world variables such as ambient temperature fluctuations, enclosure heat buildup, and extended operating cycles.
By avoiding continuous operation at peak thermal capacity, high brightness monitors experience less component stress, more stable optical performance, and longer service life. This approach is particularly important for industrial and transportation applications where displays may run 24/7 and maintenance access is limited.
Thermal Challenges in Sealed & Outdoor Enclosures

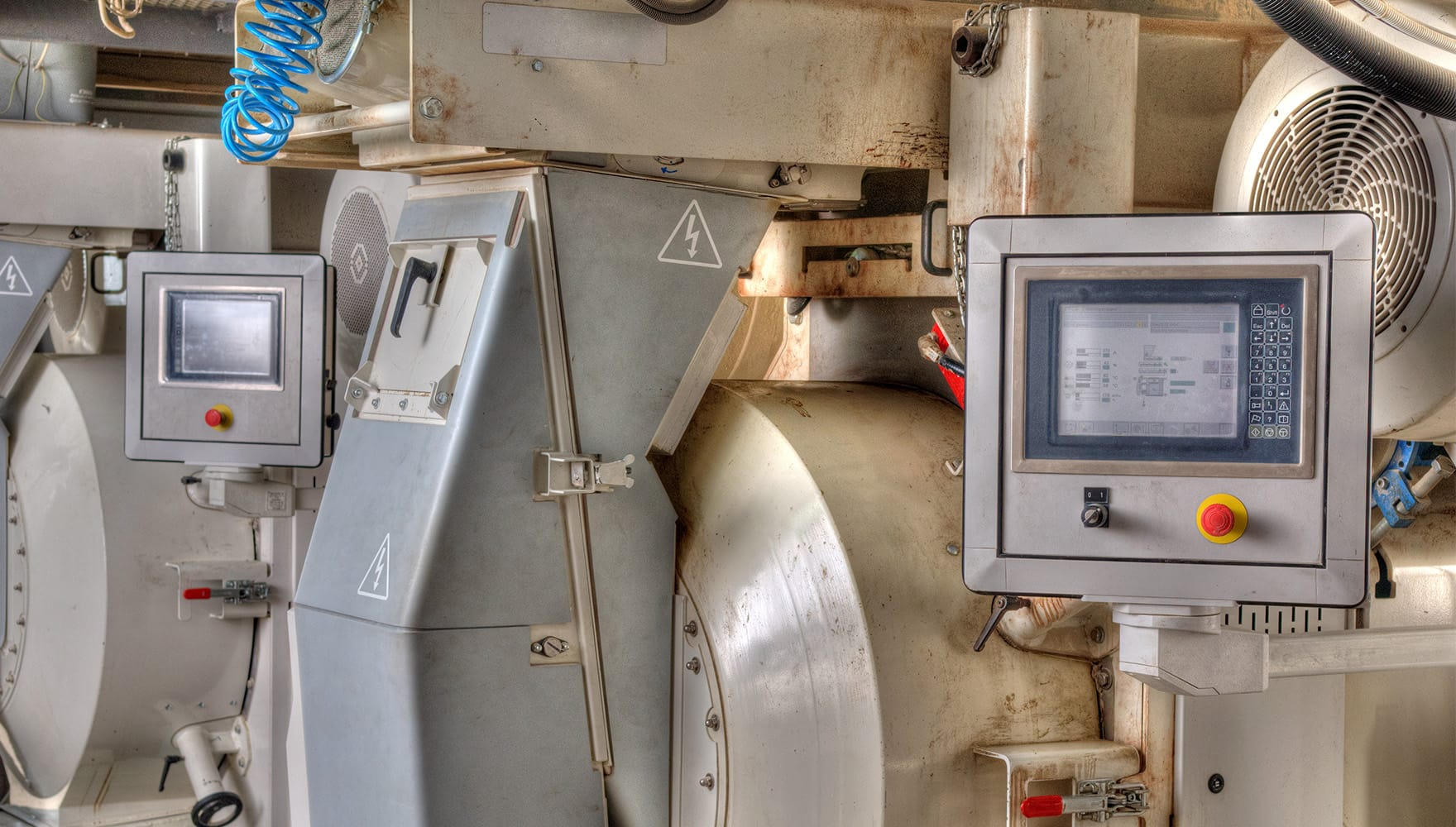

Many industrial displays are deployed inside sealed housings to protect against moisture, dust, chemicals, salt spray, or pressure washdown. While sealing improves environmental resilience, it also limits the ways heat can escape.
In these scenarios, thermal performance depends heavily on how effectively heat can be conducted from internal components to the exterior of the enclosure. Key design strategies include:
- Selecting enclosure materials with appropriate thermal conductivity
- Creating continuous heat paths from heat-generating components to the outer housing
- Accounting for solar loading, ambient temperature extremes, and installation orientation
Without these considerations, even a well-designed high brightness monitor can struggle to maintain stable operating temperatures. When executed correctly, however, sealed and outdoor systems can achieve both environmental protection and long-term thermal reliability.
Environmental Heat Sources Beyond the Display
In real‑world deployments, internal heat generation is only part of the thermal equation. External environmental factors often play an equally significant role in overall system temperature.
Outdoor displays may be exposed to direct sunlight that heats both the enclosure and surrounding air, while displays mounted inside cabinets, vehicles, or control panels can be affected by heat generated from nearby electronics. Limited airflow within these environments can cause temperatures to rise even when the display itself is operating efficiently.
Effective thermal design considers the entire system, not just the display in isolation. By accounting for environmental heat sources and system‑level interactions, engineers can ensure that daylight readable monitors remain stable and reliable across a wide range of operating conditions.
Balancing Brightness & Longevity
Preventing overheating is about balancing luminance with durability. A high-NIT display must deliver clear visibility while operating within safe thermal margins.
Well-engineered high brightness monitors maintain consistent performance without sacrificing system health. By combining passive cooling strategies, integrated heat sinks, and power-efficient electronics, thermal stress is distributed and controlled rather than allowed to accumulate.
This balance is especially critical in applications where displays are expected to operate continuously for years, often in environments where maintenance access is limited.
Engineering High-NIT Displays for Real-World Conditions
High-NIT displays present unique thermal challenges, but those challenges are fully manageable with the right engineering approach. Effective thermal design ensures that sunlight readable monitors remain stable, readable, and reliable, even in sealed enclosures or harsh outdoor environments.
Rather than treating heat as a secondary concern, successful industrial display design addresses thermal performance from the earliest stages of development. The result is a daylight readable monitor that delivers sustained brightness, predictable behavior, and long service life.
How AbraxSys Applies These Principles
AbraxSys designs industrial displays with thermal performance as a foundational requirement, not an afterthought. By applying passive cooling techniques, purpose-built heat dissipation, and intelligent power design, AbraxSys’s high brightness monitors are engineered to operate reliably in sealed, outdoor, and mission-critical environments.
These design principles allow AbraxSys sunlight readable monitors to maintain clarity and performance across wide temperature ranges while supporting long-term deployment and system stability.
Explore AbraxSys industrial display solutions or connect with our team to identify the ideal display for your application-specific requirements.
