SRD-CM-121

12.1″ Sunlight Readable Industrial Grade Open-Frame LCD Display

Model SRD-CM-121 is a 12.1” Sunlight Readable open-frame chassis mount LCD delivering outstanding performance in demanding outdoor conditions. This industrial-grade monitor features 1024 x 768 resolution, 1200 nits brightness, and an ultra-high contrast rating of 60:1 CR @10,000 Lux (750:1), ensuring clear visibility in direct sunlight and harsh environments; -30°C to 85°C (-22°F to 185°F) operation.  Video input possibilities include:  DVI, DisplayPort, VGA, HDMI or a combination of any these with input toggle selection.  The unit can be configured without touch or protective window, or with a 3mm Optical Grade Protective Window, or with our Hardened Armored Resistive Touch window.

These industrial monitors are ideal for kiosk integration and can be configured with custom firmware/OSD menu and even your logo during system bootup.

Key Features

  • 12” TFT LCD with 1024 x 768 resolution
  • 1200 nits brightness with long-life LED backlight
  • Ultra High Contrast: 60:1 CR @10,000 Lux (750:1) for enhanced sunlight readability
  • Industrial-grade construction, all wiring and connectors are well retained
  • Rigorously tested to meet strict industry standards
  • Engineered to outperform standard commercial monitors
3 Year Warranty product feature iconSunlight readable LCD display screen product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Abraxsys Brochure User Manual

Technical Specifications

Model
SRD-CM-121
Display Size
12.1"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
Ultra High Contrast Sun Readability 60:1 CR @10,000 Lux (750:1)
Aspect Ratio
4:3
Resolution
1024 x 768 (XGA) Native
Colors Supported
16.2M
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort
User Controls
Keypad Membrane with Dedicated Up/Down Arrows for Dimming & OSD access; can also be configured with a Manual Full-Range Dimming Turn Knob or Automatic Dimming Sensor
Protective Window

3mm Optical Grade Protective Window, or with our Hardened Armored Resistive Touch window or even with NO window

Power Types
12V DC, 24V DC, 9 to 36V DC, 20 to 53V DC, 90 VAC to 264 VAC
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
Multiple Mounting Points to best meet customer’s mounting format
Overall Dimensions
Width 13.78” (350mm) x Height 10.02” (254.51mm) x Depth 2.14” (54.53mm)
Active Area
W 9.68” (245.76mm) x H 7.26” (184.32mm)
Warranty Period
1 Year
Operating Temperature Range
-30°C to 85°C (-22°F to 185°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
Operating: 1g RMS 20-500Hz
Fasteners

Vibration-proof, self-locking, fastener system which will not loosen regardless of seat torque. Designed to help make products safer, lower warranty costs and prolong equipment life by eliminating vibration; increased safety, reliability, operating life and reduced maintenance.

EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes

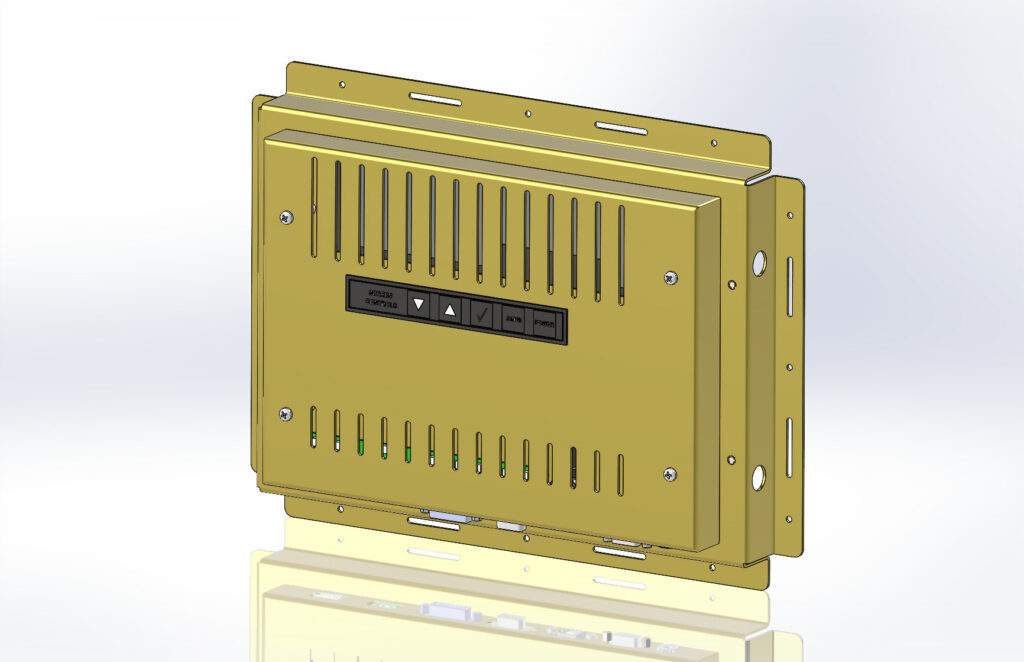

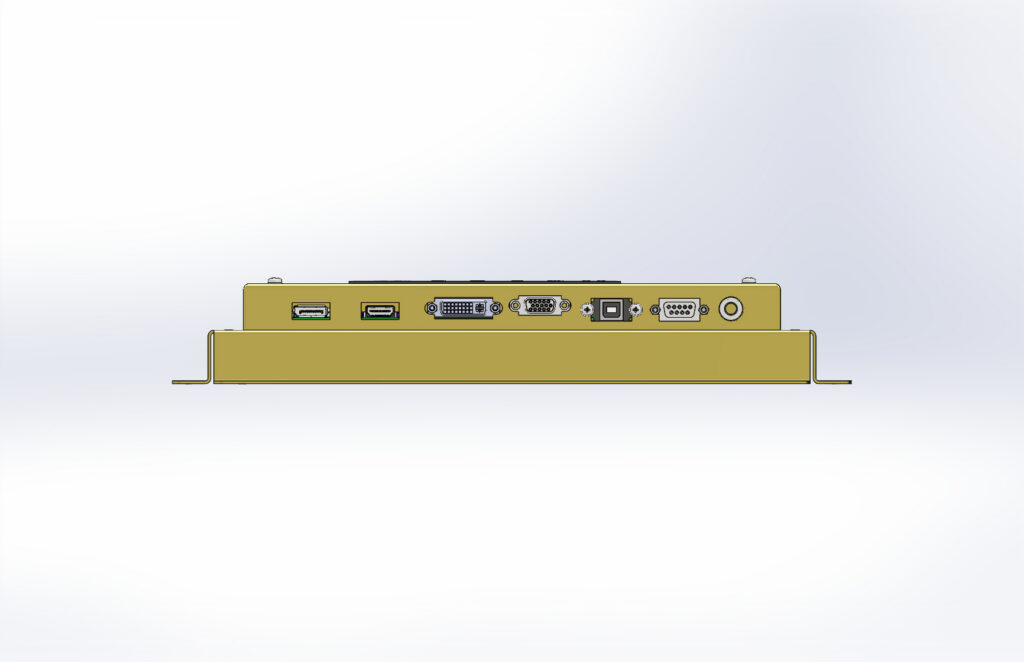

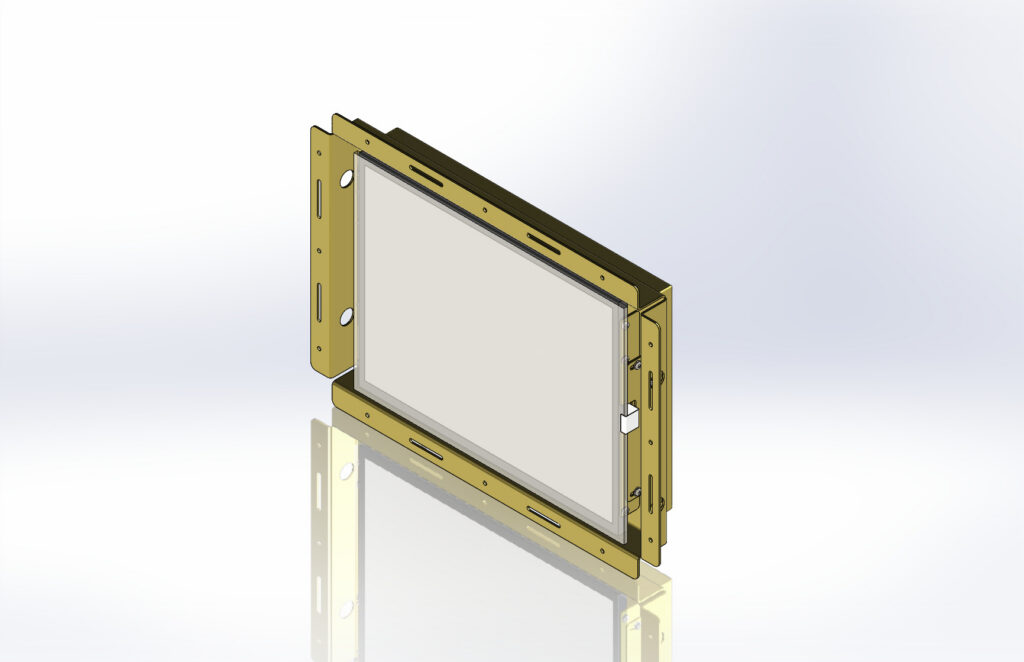

Mechanical Drawings
Model
SRD-CM-121
Display Size
12.1"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
Ultra High Contrast Sun Readability 60:1 CR @10,000 Lux (750:1)
Aspect Ratio
4:3
Resolution
1024 x 768 (XGA) Native
Colors Supported
16.2M
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort
User Controls
Keypad Membrane with Dedicated Up/Down Arrows for Dimming & OSD access; can also be configured with a Manual Full-Range Dimming Turn Knob or Automatic Dimming Sensor
Protective Window

3mm Optical Grade Protective Window, or with our Hardened Armored Resistive Touch window or even with NO window

Power Types
12V DC, 24V DC, 9 to 36V DC, 20 to 53V DC, 90 VAC to 264 VAC
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
Multiple Mounting Points to best meet customer’s mounting format
Overall Dimensions
Width 13.78” (350mm) x Height 10.02” (254.51mm) x Depth 2.14” (54.53mm)
Active Area
W 9.68” (245.76mm) x H 7.26” (184.32mm)
Warranty Period
1 Year
Operating Temperature Range
-30°C to 85°C (-22°F to 185°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
Operating: 1g RMS 20-500Hz
Fasteners

Vibration-proof, self-locking, fastener system which will not loosen regardless of seat torque. Designed to help make products safer, lower warranty costs and prolong equipment life by eliminating vibration; increased safety, reliability, operating life and reduced maintenance.

EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes

Additional Add-Ons

Window

3mm Optical Grade AR/AFP UV Protection
Hardened Armored Resistive Touch Screen

No Protective Optical Window

Video Input Options: DVI, HD15 (VGA), DisplayPort, and/or HDMI

Custom Video Modes

Power Type Choices: 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC, or 90 VAC to 264 VAC

Extended Operational Temperature Ranges

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Customization Services

Bezel:  IP65 or IP66 types

Conformal Coating of all Internal Circuit Boards

Private Labeling Services
