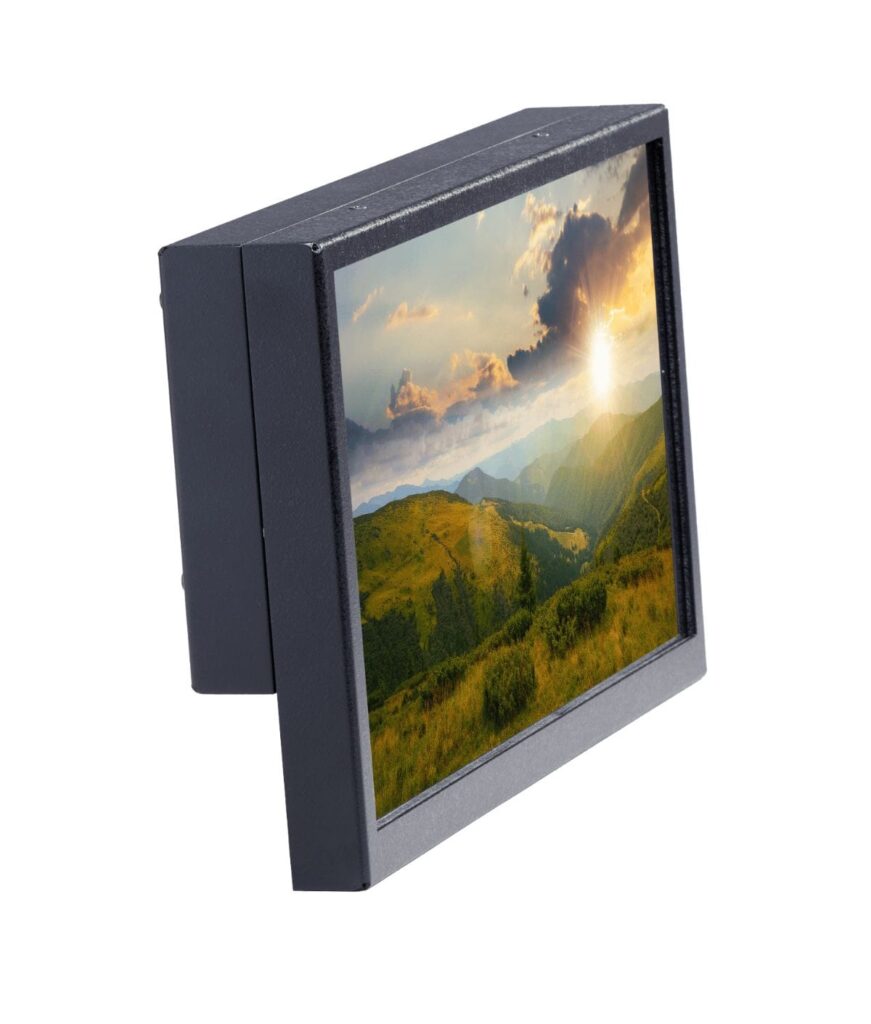

SRD-VM-133-ULP

13.3″ Sunlight Readable VESA Mount – Wide Format

Model SRD-VM-133-ULP is an ultra low profile 13.3” Full HD LCD monitor from AbraxSys, designed for rugged environments requiring a slim, space-efficient display solution. Featuring a 1920 × 1080 TFT panel, this VESA-mountable unit includes a toughened glass screen, Analog-Digital interface, backlight inverter, and OSD controls. Its corrosion-resistant, powder-coated aluminum housing offers exceptional shock and vibration protection, making it ideal for reliable integration in industrial systems with space constraints.

Key Features

  • 13.3” Full HD (1920 × 1080) TFT display
  • Ultra low profile design for space-sensitive applications
  • Sunlight readable for use in high ambient light environments
  • Compact, rugged metal enclosure with VESA mount compatibility
  • Toughened protective glass screen
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Durable aluminum housing with zinc-chromate dip and powder coating
  • Shock and vibration resistant, built for industrial reliability
  • Long-life display with no scheduled end of life
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeLCD screen product feature badgeLED screen product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconVESA mount compatible LCD monitor product feature badgeRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-VM-133-ULP
Display Size
13.3"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1500 nits (cd/m2)
Contrast Ratio
700:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p)
Colors Supported
16.7M (8-bit/color)
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 70°C (-22°F to 158°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 12 - IP50

Additional Add-On Options

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, and/or NTSC-PAL

Custom Video Modes

Extended Operational Temperature Ranges

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Conformal Coating of all Internal Circuit Boards

Private Labeling Services

Customization Services
