SRD-VM-270

27″ Sunlight Readable VESA Mount – NEMA 12 (IP50)

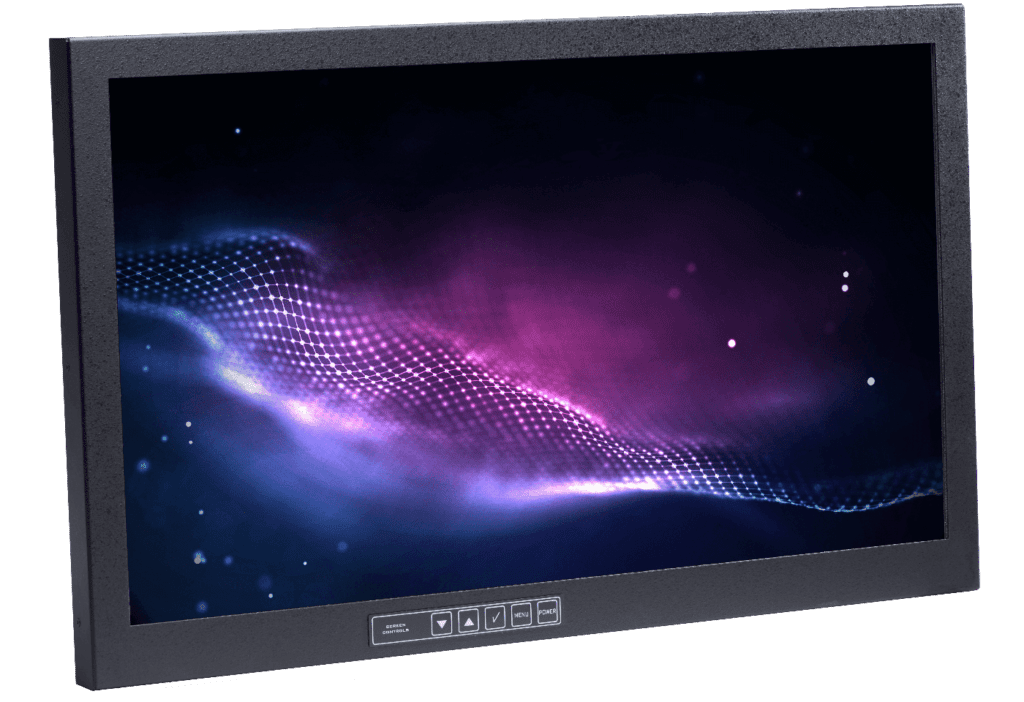

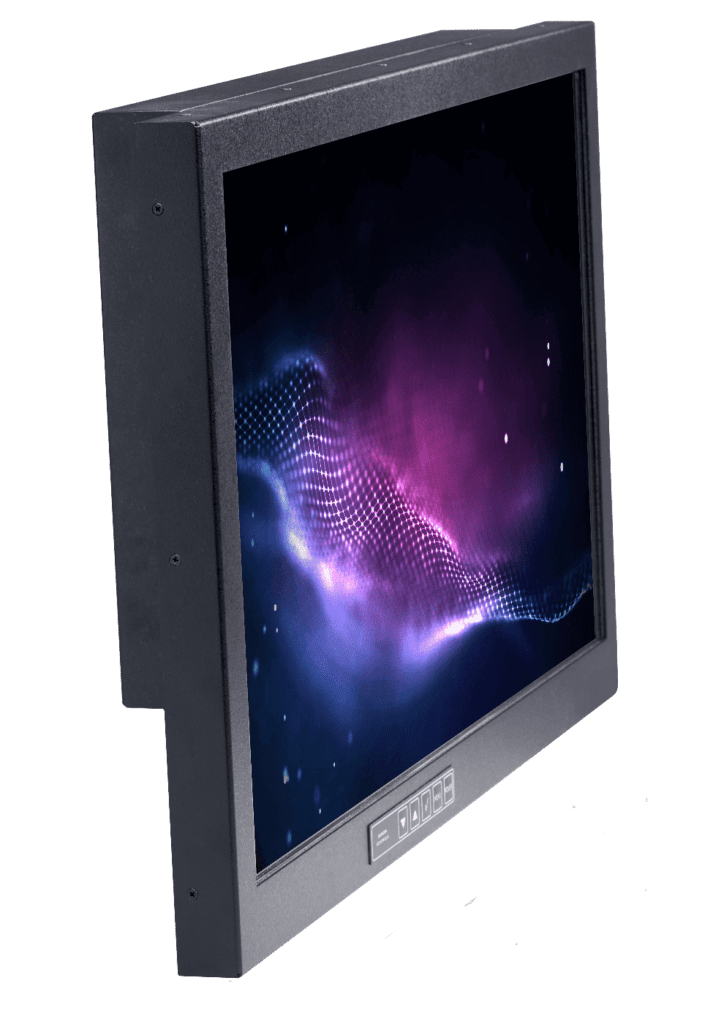

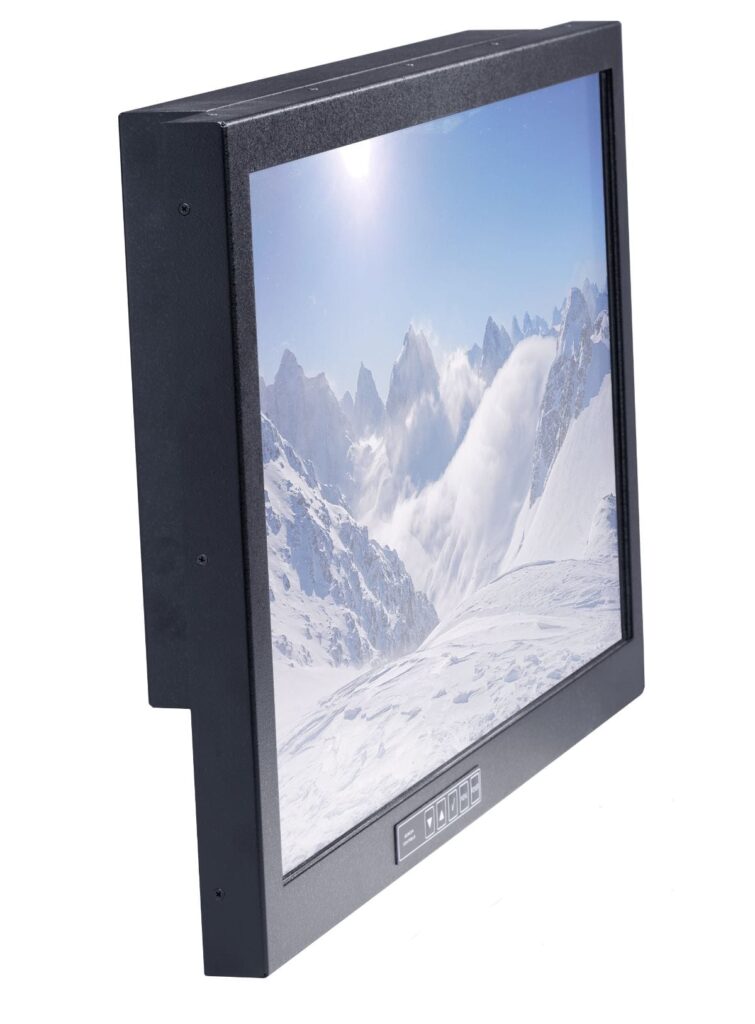

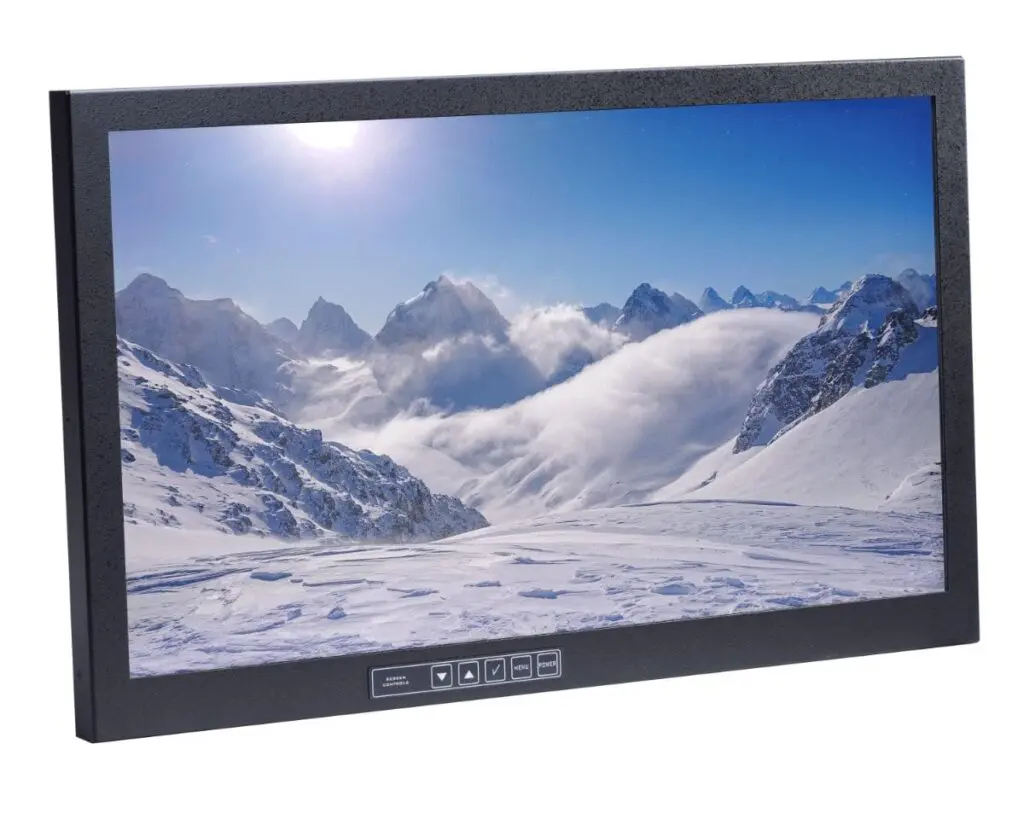

Model SRD-VM-270 is a rugged 27” Daylight Readable LCD monitor from AbraxSys, designed for industrial and harsh-duty environments requiring high-performance visual clarity. Available in standard 1080p or optional 4K Ultra High-Definition (3840 × 2160) resolution, this NEMA 12 (IP50) rated model features up to 1000 nits brightness (800 nits for 4K) and operates across a wide temperature range. Packaged in a compact, durable metal housing with a toughened glass screen, it’s ready for integration into any system as an analog display or touchscreen-based HMI.

Key Features

  • 27” LCD flat panel with options for:
  • Full HD 1920 × 1080 resolution (1000 nits brightness)
  • 4K UHD 3840 × 2160 resolution (800 nits brightness)
  • NEMA 12 (IP50) rated for dust-resistant industrial environments
  • Wide operational temperature range for demanding applications
  • Toughened glass protective screen
  • Rugged metal housing with compact footprint
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Ideal for integration as a standalone monitor or touchscreen HMI
  • Built for high ambient light and harsh-duty installations
3 Year Warranty product feature iconLCD screen product feature badgeLED screen product feature badgeSunlight readable monitor for high visibility industrial use product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconRugged Industrial Monitor product feature iconVESA mount compatible LCD monitor product feature badgeWide operational temperature safety range product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-VM-270
Display Size
27.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1000 nits (cd/m2)
Contrast Ratio
1000:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (FHD 1080P) or 3840 x 2160 (UHD 4K), panel configuration dependent
Colors Supported
16 million for 1080P FHD version or 1.07 Billon Colors [10 bit color] for 3840 x 2160 4K typ
Viewing Angles
- 89 ~ 89 horizontal, - 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Overall Dimensions
17.377” (441.37mm) x 26.279” (667.50mm) x 3.067” (77.90mm)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 12 / IP52

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP





Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, HD-SDI, and/or NTSC-PAL

Customization Services

Extended Operational Temperature Ranges

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming



Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Conformal Coating of all Internal Circuit Boards

Private Labeling Services

Custom Video Modes
