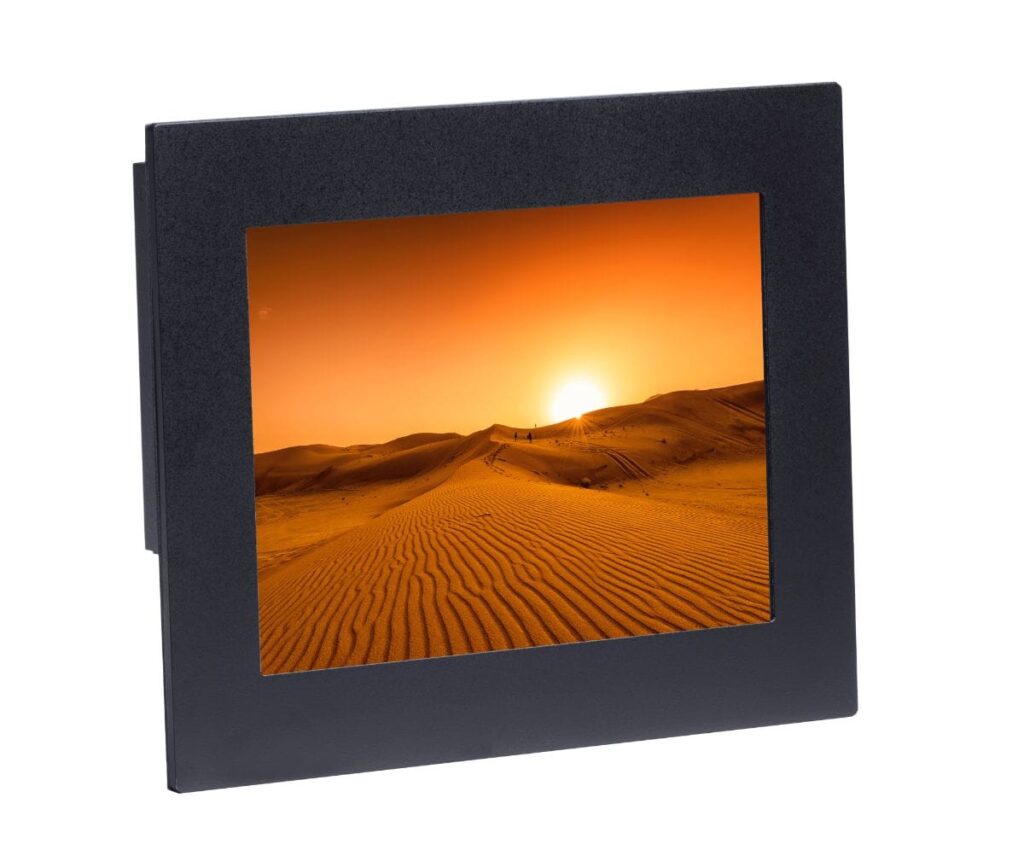

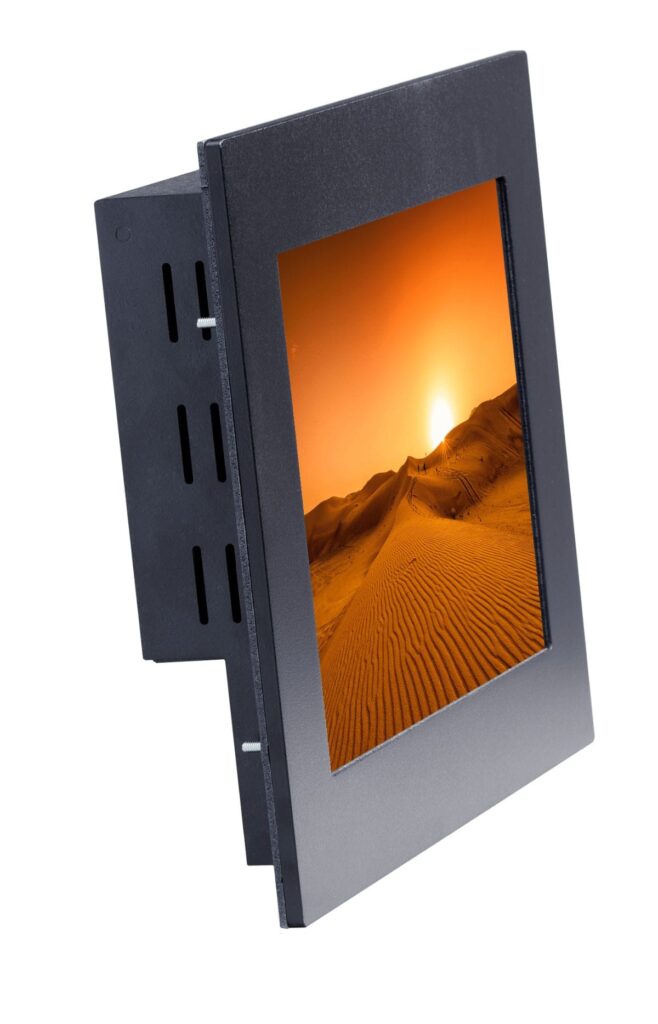

SRD-PM-121

12.1″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

Model SRD-PM-121 is an AbraxSys’ second-generation 12” Sunlight Readable LCD, delivering outstanding performance in demanding outdoor conditions. Designed with NEMA 4 (IP65) front bezel protection, this industrial-grade monitor features 1024 x 768 resolution, 1200 nits brightness, and an ultra high-contrast rating of 60:1 CR @10,000 Lux, ensuring clear visibility in direct sunlight and harsh environments.

Key Features

  • 12” TFT LCD with 1024 x 768 resolution
  • 1200 nits brightness with long-life LED backlight
  • Ultra High Contrast: 60:1 CR @10,000 Lux for enhanced sunlight readability
  • NEMA 4 (IP65) rated front bezel for protection against water and dust
  • Industrial-grade construction for rugged outdoor applications
  • Rigorously tested to meet strict industry standards
  • Engineered to outperform standard commercial monitors
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PM-121
Display Size
12.1"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
Ultra High Contrast Sun Readability 60:1 CR @10,000 Lux
Aspect Ratio
4:3
Resolution
1024 x 768 (XGA) Native
Colors Supported
16.2M
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Overall Dimensions
13.13" (335.50mm) x 11.08" (281.43mm) x 1.99" (50.75mm)
Cutout
10.5” (266.7mm) x 12.5” (317.5mm)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 85°C (-22°F to 185°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology





Video Input Options: DVI, HD15 (VGA), DisplayPort, and/or HDMI

Custom Video Modes

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Extended Operational Temperature Ranges

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Customization Services

NEMA 4X IP66 Stainless Steel Front Bezel

Conformal Coating of all Internal Circuit Boards

Private Labeling Services
