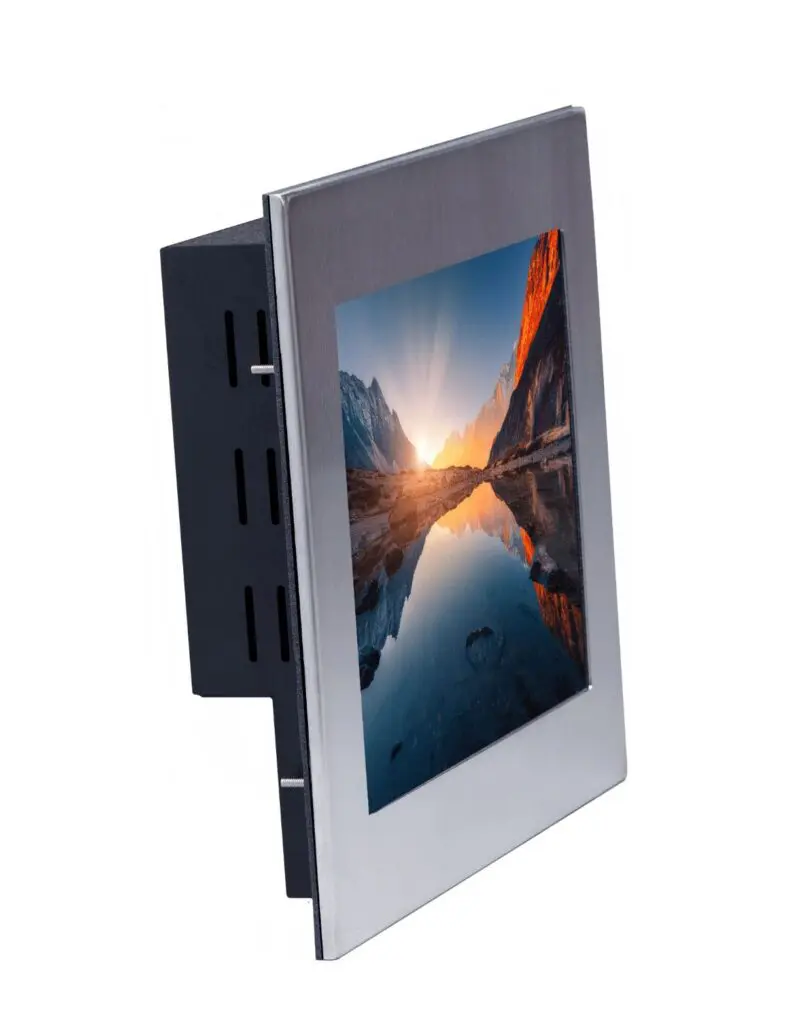

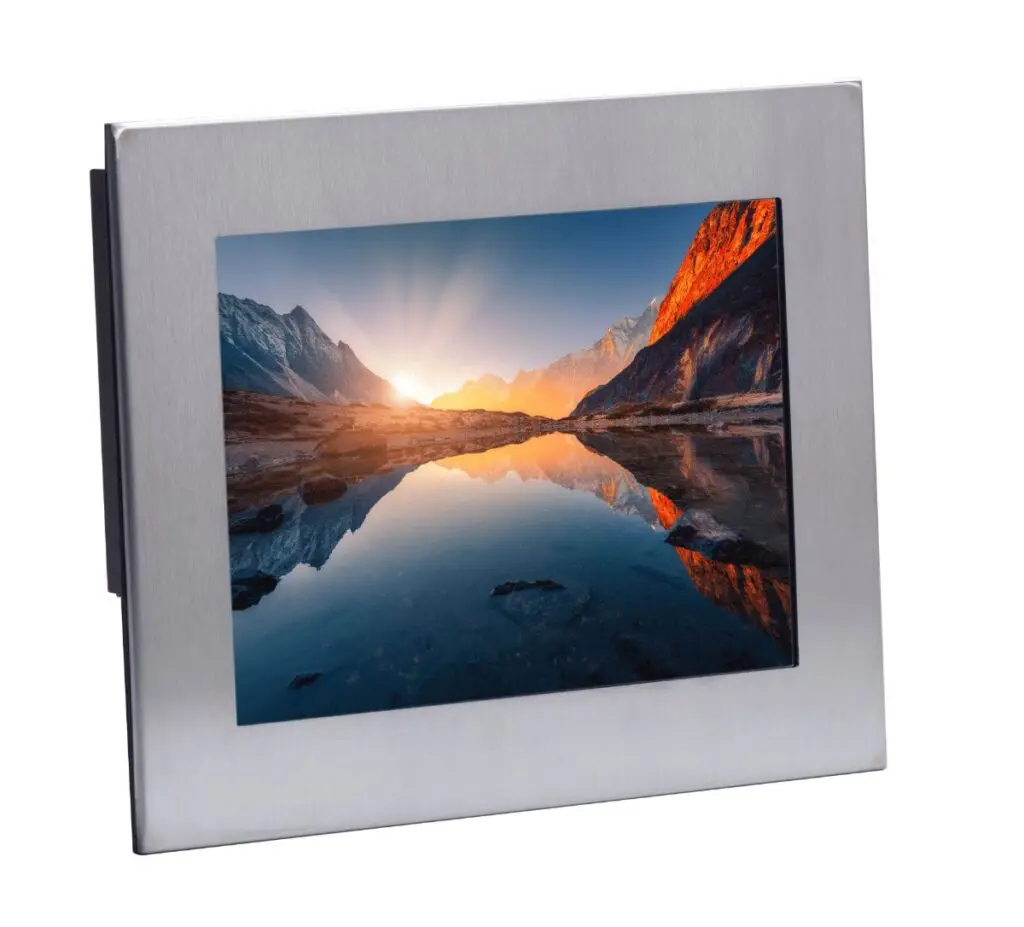

SRD-PS-121

12.1″ Sunlight Readable Panel Mount – NEMA 4X (IP66)

Model SRD-PS-121 is a second-generation 12” Sunlight Readable LCD from AbraxSys, engineered for tough industrial settings. With a NEMA 4X (IP66) rated front bezel, this display is built to withstand exposure to moisture, chemicals, oil, and direct spray. Offering 1200 nits brightness, 1024 x 768 resolution, and an ultra high-contrast 60:1 CR @10,000 Lux, it ensures vivid, reliable performance in high ambient light and aggressive environments.

Key Features

12” LCD with 1024 x 768 resolution
1200 nits high-brightness LED backlight
Ultra High Contrast: 60:1 CR @10,000 Lux for clear sunlight visibility
NEMA 4X (IP66) front bezel for resistance to water, dust, and caustic elements
Built for use in harsh industrial and outdoor environments
Tested for compliance with demanding industry standards
Outperforms standard commercial-grade monitors

IP66 Waterproof protection rated product feature badge

Quick Quote Sunlight Readable Brochure Abraxsys Brochure User Manual Data Sheet

Technical Specifications

Model

SRD-PS-121

Display Size

12.1"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1200 nits (cd/m2)

Dimming Capabilities

Deep Dimming Down to Black

Contrast Ratio

Ultra High Contrast Sun Readability 60:1 CR @10, 000 Lux

Aspect Ratio

4:3

Resolution

1024 x 768 (XGA) Native

Colors Supported

16.2M

Viewing Angles

−85° ∼ 85° horizontal, −85° ∼ 85° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

Stainless Steel

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Panel Mounting

10-32 Stainless Mounting Studs, 1/2” Exposed Thread

Overall Dimensions

13.13" (335.50mm) x 11.08" (281.43mm) x 1.99" (50.75mm)

Cutout

10.5” (266.7mm) x 12.5” (317.5mm)

Sealability

NEMA 4X (IP66)

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 80°C (-22°F to 176°F)

Storage Temperature

-30°C to 85°C (-22°F to 185°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.

RoHS Compliant

Yes

Rating

NEMA 4X - IP66

Cutout Drawings

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, and/or HDMI

Custom Video Modes

Extended Operational Temperature Ranges

Private Labeling Services

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Conformal Coating of all Internal Circuit Boards
