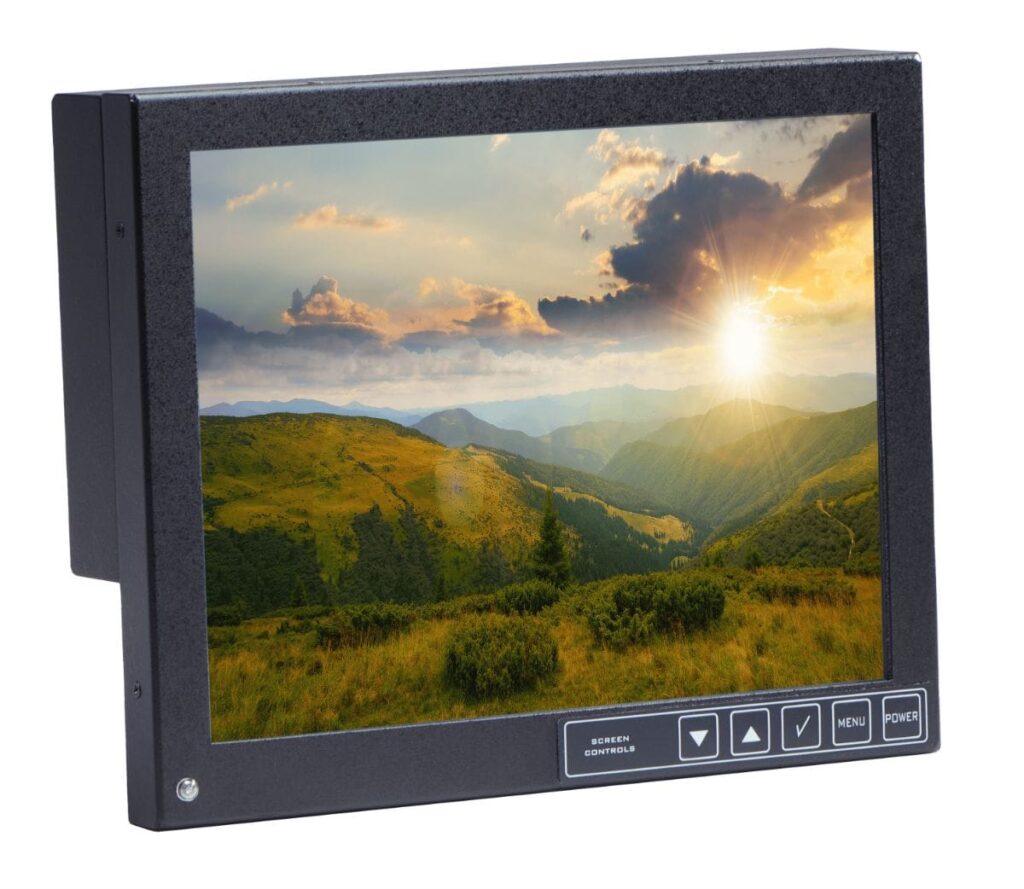

SRD-VM-121

12.1″ Sunlight Readable VESA Mount

Model SRD-VM-121 is a robust 12.1” Sunlight Readable LCD monitor from AbraxSys, designed for demanding environments. Featuring a 1024 × 768 XGA TFT panel with 1200 nits LED backlighting and ultra high contrast (60:1 CR @10,000 Lux), this monitor delivers clear visibility even in intense light. With a durable metal housing, toughened glass screen, and integrated A/D interface, it’s a flexible display solution for analog or touchscreen HMI system integration.

Key Features

12.1” XGA (1024 × 768) TFT display
1200 nits high-luminance LED backlight
Ultra High Contrast: 60:1 CR @10,000 Lux for direct sunlight readability
Analog-Digital interface board, backlight inverter, and OSD controls
Toughened glass screen for added protection
Compact, rugged metal enclosure
Suitable for use as standalone monitor or touchscreen HMI
Built for reliability in harsh, outdoor environments

Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model

SRD-VM-121

Display Size

12.1"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1200 nits (cd/m2)

Contrast Ratio

600:1

Aspect Ratio

4:3

Resolution

1024 x 768

Colors Supported

16.2M

Viewing Angles

−85° ∼ 85° horizontal, −85° ∼ 85° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Panel Mounting

Pass Through or Rear Mount VESA

Overall Dimensions

11.246" (285.64mm) x 9.098" (231.08mm) x 2.5" (63.50mm)

Weight

6 lbs (2.72 Kg)

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 85°C (-22°F to 185°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.

RoHS Compliant

Yes

Rating

NEMA 12 - IP50

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, and/or DisplayPort

Conformal Coating of all Internal Circuit Boards

Extended Operational Temperature Ranges

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Custom Video Modes

Private Labeling Services
