SRD-VM-150

15″ Sunlight Readable VESA Mount – NEMA 12 (IP52)

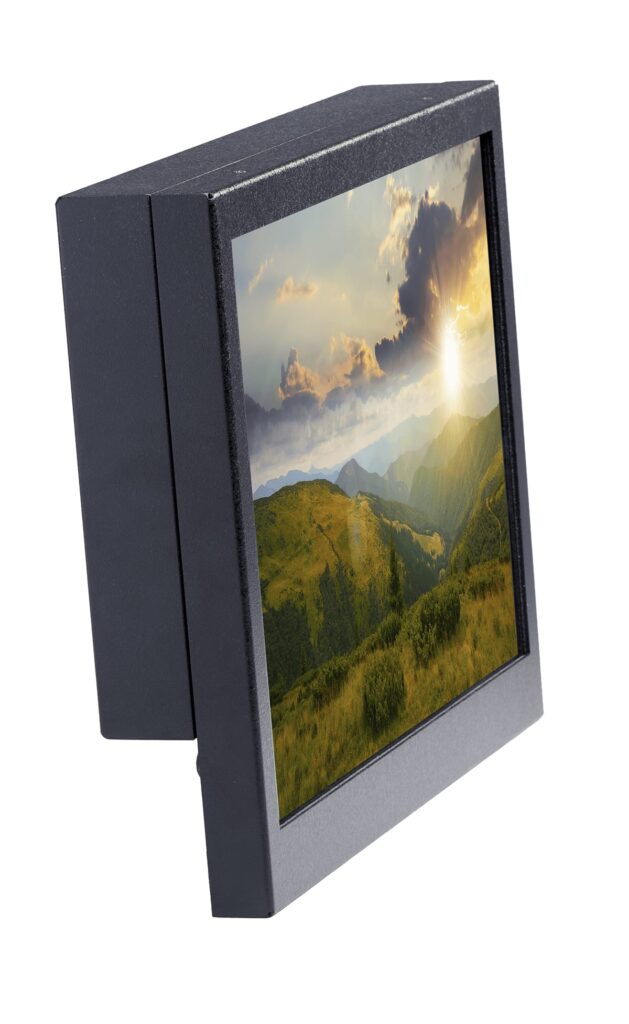

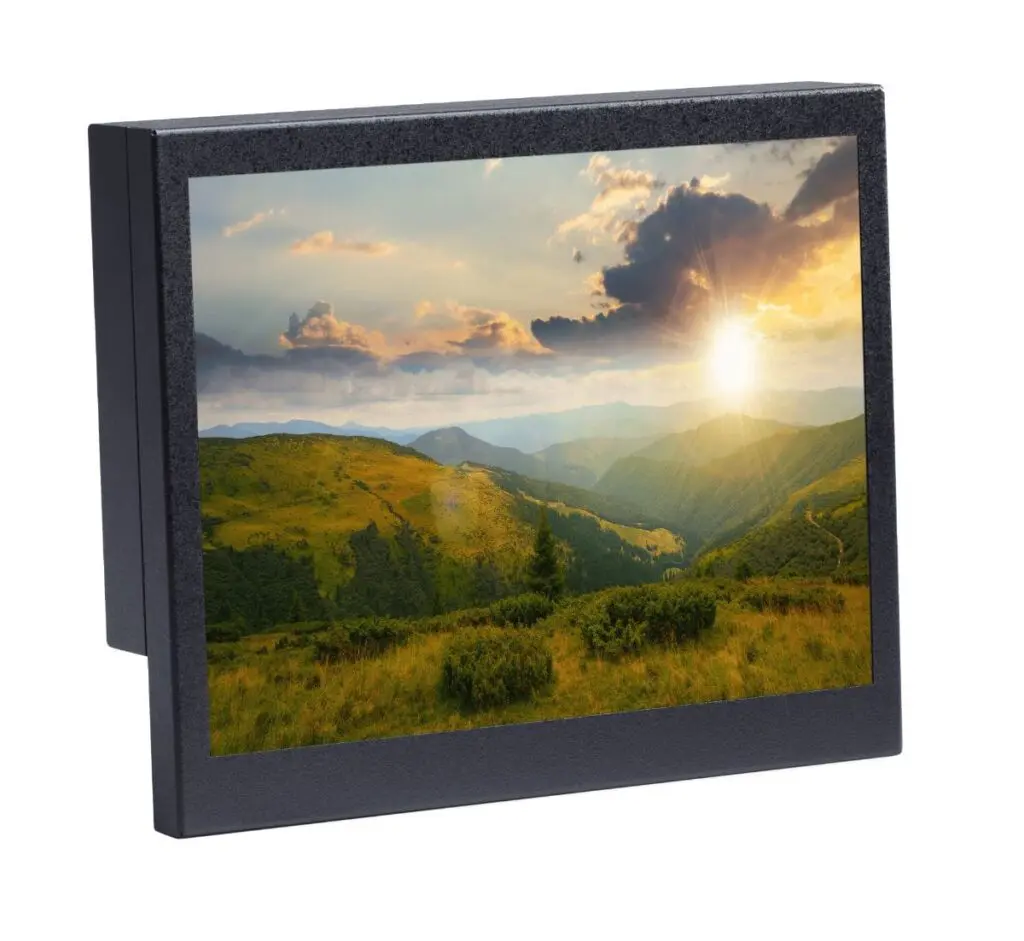

Model SRD-VM-150 is a rugged 15” XGA Sunlight Readable LCD monitor from AbraxSys, featuring IPS panel technology for wide viewing angles and enhanced image clarity. With 1100 nits high-luminance LED backlighting (optional 1600 nits available), this NEMA 12 (IP52) rated model is built for industrial use in high ambient light environments. Packaged in a compact metal housing with a toughened glass screen and integrated A/D interface, it’s ready for deployment as a standalone display or touchscreen HMI.

Key Features

  • 15” XGA TFT IPS flat panel for superior image consistency
  • 1100 nits high-luminance LED backlight (1600 nits option available)
  • NEMA 12 (IP52) rated for protection against dust and moisture
  • Wide viewing angles enabled by IPS technology
  • Toughened glass protective screen
  • Compact, rugged metal enclosure
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Suitable for analog or touchscreen HMI integration
  • Designed for performance in harsh and bright environments
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeLCD screen product feature badgeLED screen product feature badgeVESA mount compatible LCD monitor product feature badgeWide operational temperature range product feature badgeImpact Protection/Resistance LCD Monitor product feature iconRugged Industrial Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-VM-150
Display Size
15.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1600 nits (cd/m2)
Contrast Ratio
800:1
Aspect Ratio
4:3
Resolution
1024 x 768
Colors Supported
16.7M (8-bit/color)
Viewing Angles
−80° ∼ 80° horizontal, −70° ∼ 80° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Overall Dimensions
11.224" x 14.572" x 2.307"
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 80°C (-22°F to 176°F)
Storage Temperature
-30°C to 85°C (-22°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 12 - IP50

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Extended Operational Temperature Ranges

Custom Video Modes

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Private Labeling Services

Conformal Coating of all Internal Circuit Boards
