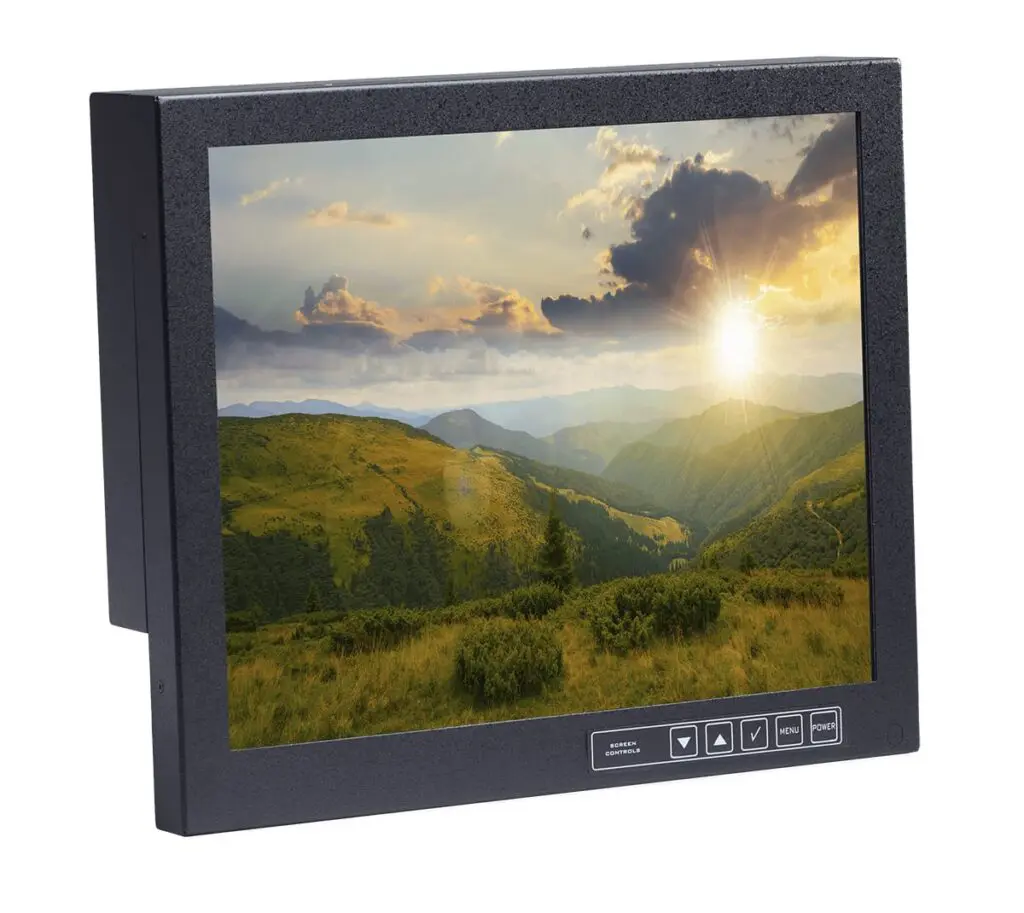

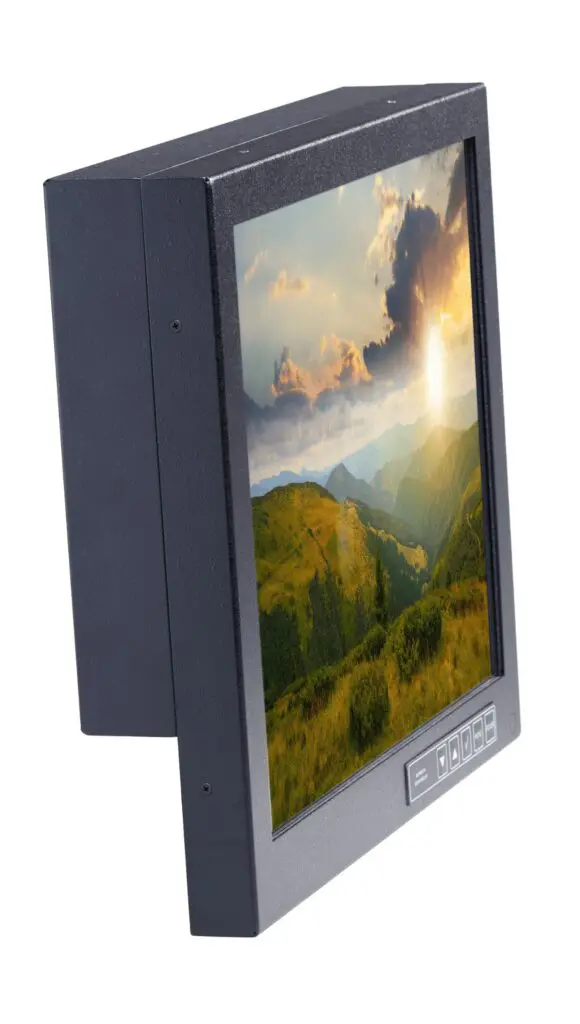

SRD-VM-170

17″ Sunlight Readable High-Bright Industrial Grade NEMA 12 (IP52) Rugged VESA Mount LCD Monitor

Model SRD-VM-170 is a 17” Daylight Readable LCD monitor from AbraxSys, built for reliable performance in demanding industrial and outdoor settings. Featuring a SXGA TFT panel, high brightness, and a NEMA 12 (IP52) rated rugged metal enclosure, this model offers dust and moisture resistance along with excellent visibility in high ambient light. With an integrated Analog-Digital interface, backlight inverter, and OSD controls, it’s ready for use as a standalone display or touchscreen HMI.

Key Features

17” SXGA TFT flat panel display
Daylight readable, high-brightness screen for outdoor visibility
NEMA 12 (IP52) rated for protection against dust and moisture
Toughened glass protective screen
Compact, rugged metal enclosure
Analog-Digital interface board, backlight inverter, and OSD controls
Designed for integration as an analog monitor or touchscreen HMI
Engineered for harsh, high-brightness environments

Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model

SRD-VM-170

Display Size

17.0"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1200 nits (cd/m2)

Dimming Capabilities

Deep Dimming Down to Black

Contrast Ratio

1000:1

Aspect Ratio

5:4

Resolution

1280 x 1024 (SXGA) Native

Colors Supported

16.7M (8-bit/color)

Viewing Angles

- 89 ~ 89 horizontal, - 89° ~ 89° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Overall Dimensions

13.003" x 15.664 x 2.307"

Sealability

NEMA 12

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 70°C (-22°F to 158°F)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.

RoHS Compliant

Yes

Rating

NEMA 12 - IP50

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Custom Video Modes

Extended Operational Temperature Ranges

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Conformal Coating of all Internal Circuit Boards

Private Labeling Services
