SRD-VM-084

8.4″ Sunlight Readable VESA Mount

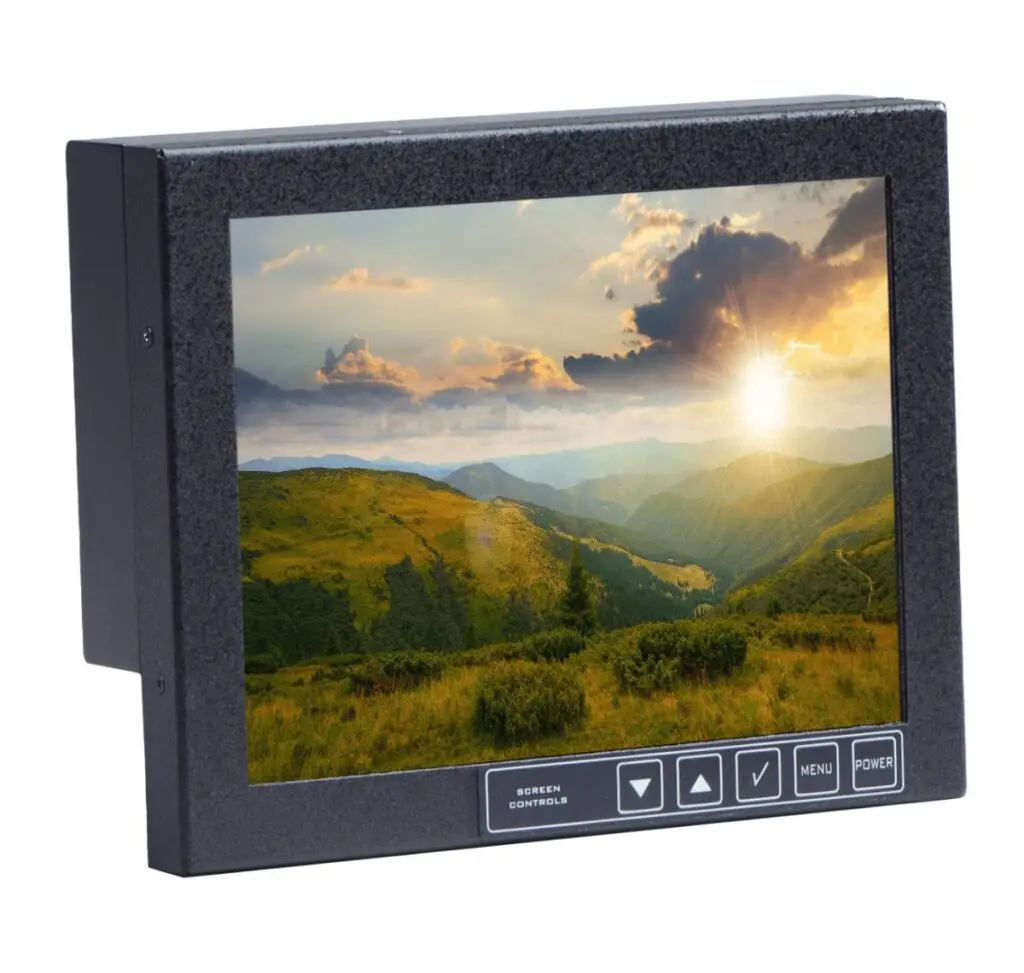

Model SRD-VM-084 is a rugged 8.4” VESA mount compatible Sunlight Readable LCD monitor from AbraxSys, designed for outdoor and industrial environments requiring clear visibility and compact integration. Featuring an XGA 1024 × 768 TFT panel, this high-brightness display is housed in a NEMA 12 (IP52) rated metal enclosure with a toughened glass screen. With an integrated Analog-Digital interface, backlight inverter, and OSD controls, it’s ready for use in analog or touchscreen-based HMI systems.

Key Features

8.4” XGA TFT LCD with 1024 × 768 resolution
High-brightness LED backlight for sunlight readability
NEMA 12 (IP52) rated housing for dust and moisture resistance
Toughened glass protective screen for durability
Compact and rugged metal enclosure
Integrated Analog-Digital interface board, backlight inverter, and OSD controls
Suitable for analog monitor applications or touchscreen-driven HMIs
Built for reliable operation in high ambient light and harsh environments

Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model

SRD-VM-084

Display Size

8.4"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1200 nits (cd/m2)

Dimming Capabilities

Front Keypad, Can be Reposition on the Rear of the Enclosure

Contrast Ratio

750:1

Aspect Ratio

4:3

Resolution

800 x 600

Colors Supported

16.7M (8-bit/color)

Viewing Angles

−85° ∼ 85° horizontal, −85° ∼ 85° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Panel Mounting

VESA 75 via 10-32 x .75 studs

Overall Dimensions

6.880" (174.76mm) x 8.24" (209.30mm) x 1.948" (49.48mm)

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 80°C (-22°F to 176°F)

Storage Temperature

-30°C to 80°C (-22°F to 176°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.

RoHS Compliant

Yes

Rating

NEMA 12 - IP50

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, and/or DisplayPort

Conformal Coating of all Internal Circuit Boards

Private Labeling Services

Extended Operational Temperature Ranges

Custom Video Modes

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming
