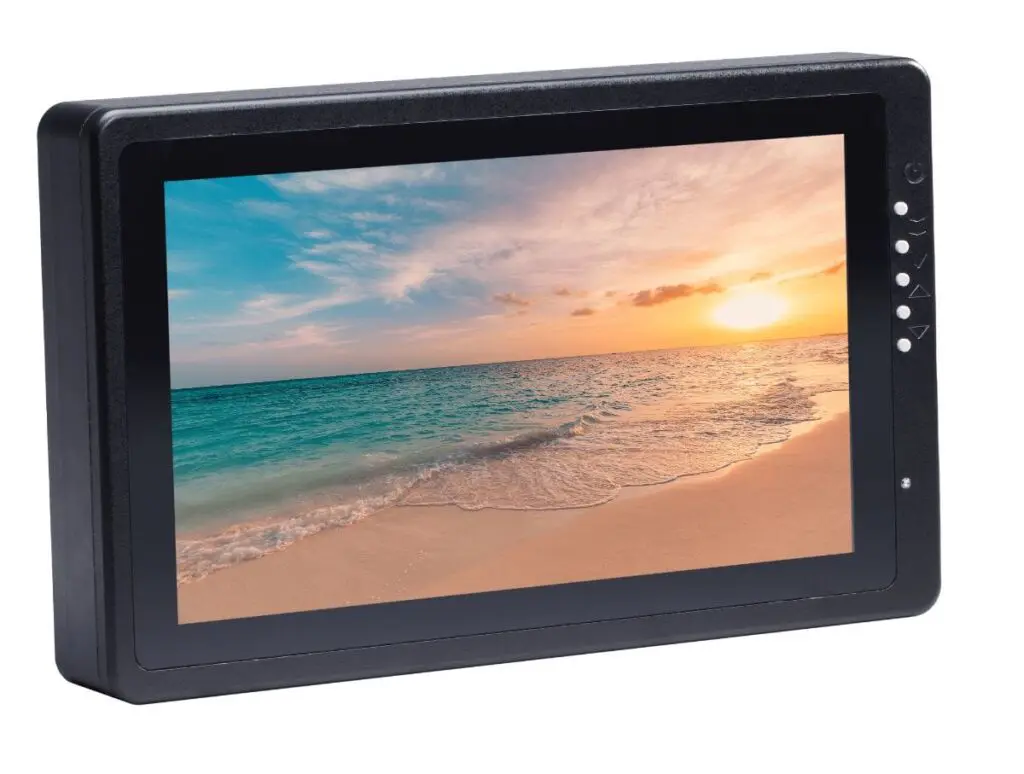

Model SRD-FVM- 185 LCD monitor is a Ultra-Rugged Sunlight Readable NEMA 4/4X (IP65/IP66) rated product and utilizes the latest 18.5″ TFT Flat Panels Full-High Definition 1920 x 1080. The enclosure is constructed of milled 6061 Grade Aluminum which has been Zinc-Chromate Dipped then treated with Corrosion Resistant Thermoset UV-stable Black Powder-Coating. AbraxSys has added a versatile Analog-Digital interface board, backlight inverter and OSD controls. All elements, including a toughened glass protective screen have been packaged in a compact, rugged metal housing. The result is a flexible Display Head, ready for integration as part of any system; as an analog monitor, or a touchscreen driven human- machine interface.

This rugged model offers exceptional shock and vibration safeguards and its housing is constructed of high grade aluminum which has been dipped in zinc-chromate and then finished with a resilient corrosive resistant thermal-set black powder-coating. This product is very ruggedly built, features long-life displays with no scheduled End Of Life. Incorporating the latest LCD and control electronics you are assured a display the will perform reliably in harsh industrial environments. Many configurations available.

Technical Specifications

General

Model
SRD-FVM-185
Display Size
18.5"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1500 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
1000:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p)
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 88° / 88° Horizontal, - 88° / 88° Vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Optical Bonding

Optional Optical Bonding of Front Protective Glass or Touch Screen Window

Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Physical Attributes

Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Sealability
NEMA 4 (IP65)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years

Environmental

Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-20°C to 70°C (-4°F to 158°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Product Resources

Additional Add-On Options

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, HD-SDI, and/or NTSC-PAL

Extended Operational Temperature Ranges

Custom Video Modes

Optical Bonding

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Conformal Coating of all Internal Circuit Boards

Private Labeling Services
