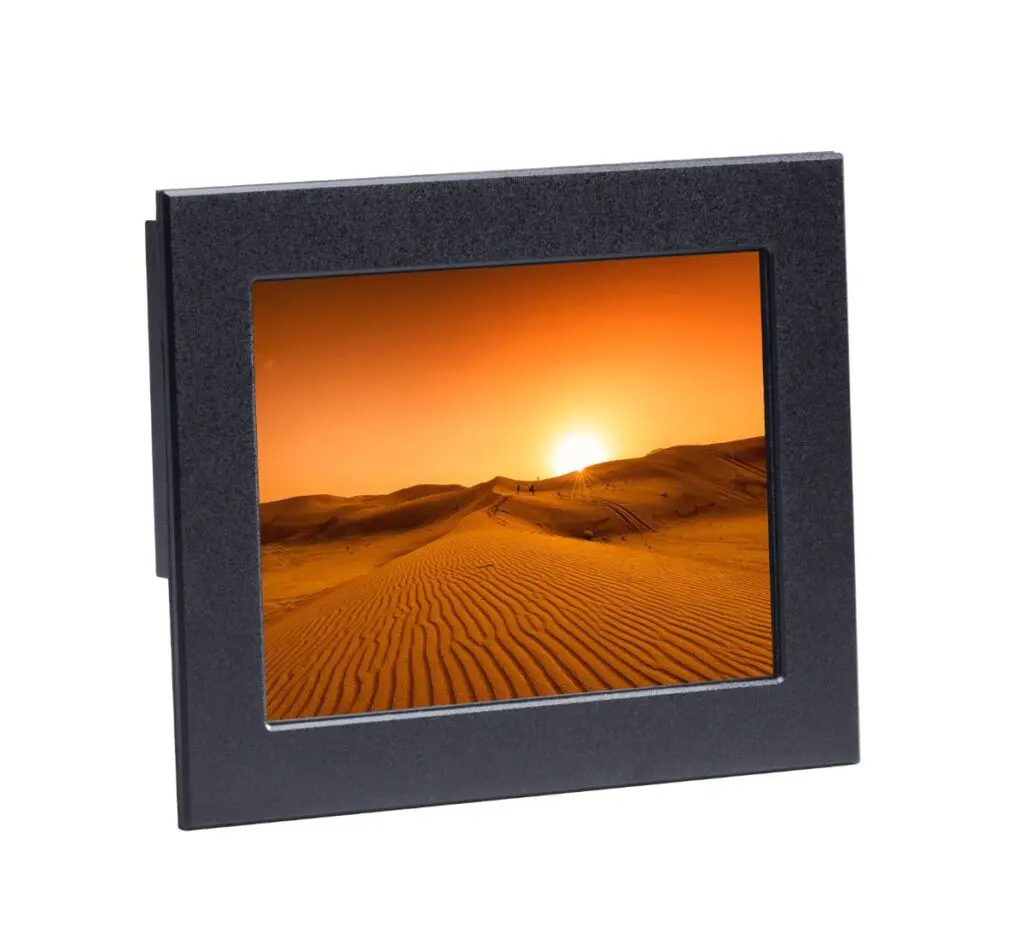

SRD-PM-104

10.4″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

Model SRD-PM-104 is a Second Generation Sunlight Readable High Brightness industrial LCD system, designed for demanding environments. It features a 10.4″ display and delivers excellent visibility even in bright conditions. The front bezel meets NEMA 4 (IP65) standards, providing reliable protection against dust and water ingress.

Key Features

10.4″ display size
Resolution: 1024 x 768 pixels
High brightness: 1300 nits (long-life LED backlight)
Contrast ratio: 700:1
NEMA 4 (IP65) rated front bezel for industrial-grade protection

NEMA4 certified LCD monitor product feature badge

Quick Quote Sunlight Readable Brochure Abraxsys Brochure User Manual Data Sheet

Technical Specifications

Model

SRD-PM-104

Display Size

10.4"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1300 nits (cd/m2)

Dimming Capabilities

Deep Dimming Down to Black

Contrast Ratio

700:1

Aspect Ratio

4:3

Resolution

1024 x 768 (XGA) Native

Colors Supported

16 million

Viewing Angles

−85° ∼ 85° horizontal, −85° ∼ 85° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort

User Controls

Front Keypad (can also be configured for rear controls), or Remote Dimming, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, Deep Dimming Down to Black

Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
