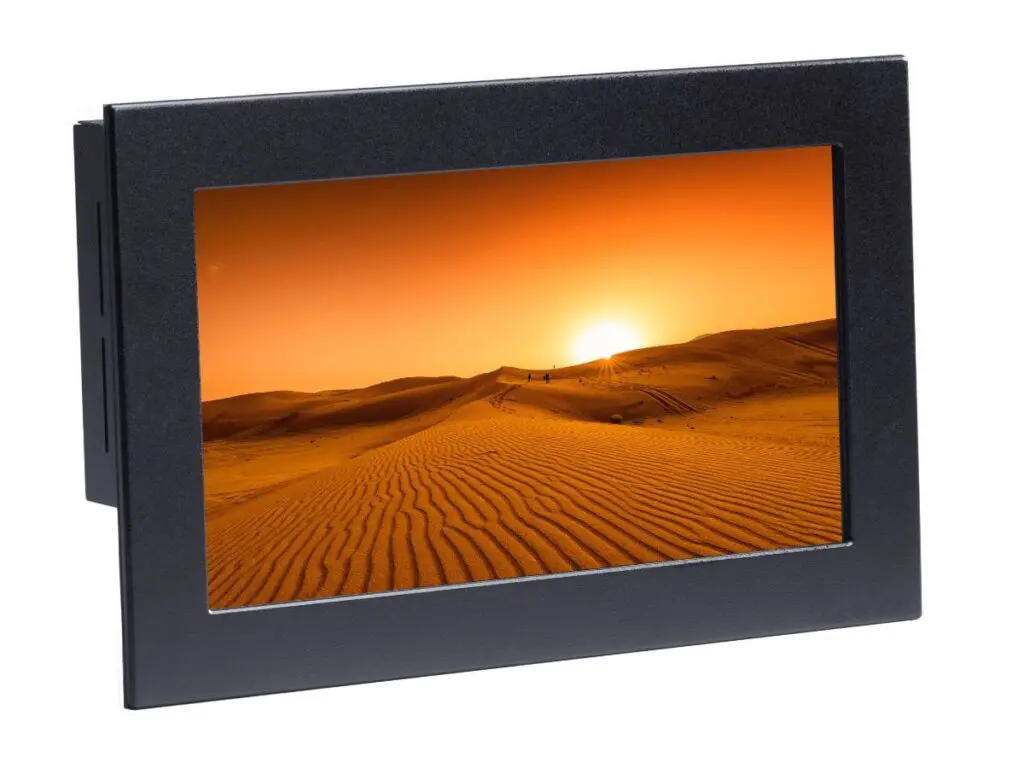

SRD-PM-156

15.6″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

Model SRD-PM-156 is a rugged 15.6” Full HD Sunlight Readable LCD monitor from AbraxSys, built to perform in extreme temperatures ranging from -30°C to 75°C (-22°F to 167°F). Featuring 1500 nits brightness and housed in a NEMA 4 (IP65) rated panel mount enclosure, this model combines high durability with vivid display clarity. Its milled aluminum housing is zinc-chromate dipped and powder-coated for superior corrosion resistance, making it a dependable solution for outdoor and industrial environments.

Key Features

  • 15.6” TFT LCD with 1920 × 1080 Full HD resolution
  • High brightness 1500 nits LED backlight for sunlight readability
  • Wide operational temperature range: -30°C to 75°C (-22°F to 167°F)
  • NEMA 4 (IP65) rated front panel for dust and water protection
  • Panel mount design in rugged, corrosion-resistant aluminum enclosure
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Toughened protective glass screen
  • Built to exceed industry standards for outdoor and harsh environments
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconWide operational temperature safety range product feature iconTouchscreen product feature badgeEnergy efficient LCD Monitor product feature badge
Quick Quote Sunlight Readable Brochure Product Brochure User Manual Data Sheet

Technical Specifications

Model
SRD-PM-156
Display Size
15.6"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

IPS (In-Plane Switching technology) panel, for more information click HERE

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1500 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
750:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p)
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 88° / 88° Horizontal, - 88° / 88° Vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Multi-Functional User Keypad
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Cutout
15 lbs. (6.8 Kg)
Weight
13.2 lbs. (5.9 kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 75°C (-22°F to 167°F), Extended Operational Temperature Ranges Available
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

DVI, HD15 (VGA), HDMI, DisplayPort, NTSC-PAL, Composite, S-Video, and/or HD-SDI

Custom Video Modes

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4X IP66 Stainless Steel Front Bezel

Customization Services

Private Labeling Services
