SRD-PS-156

15.6″ Sunlight Readable Panel Mount – NEMA 4X (IP66)

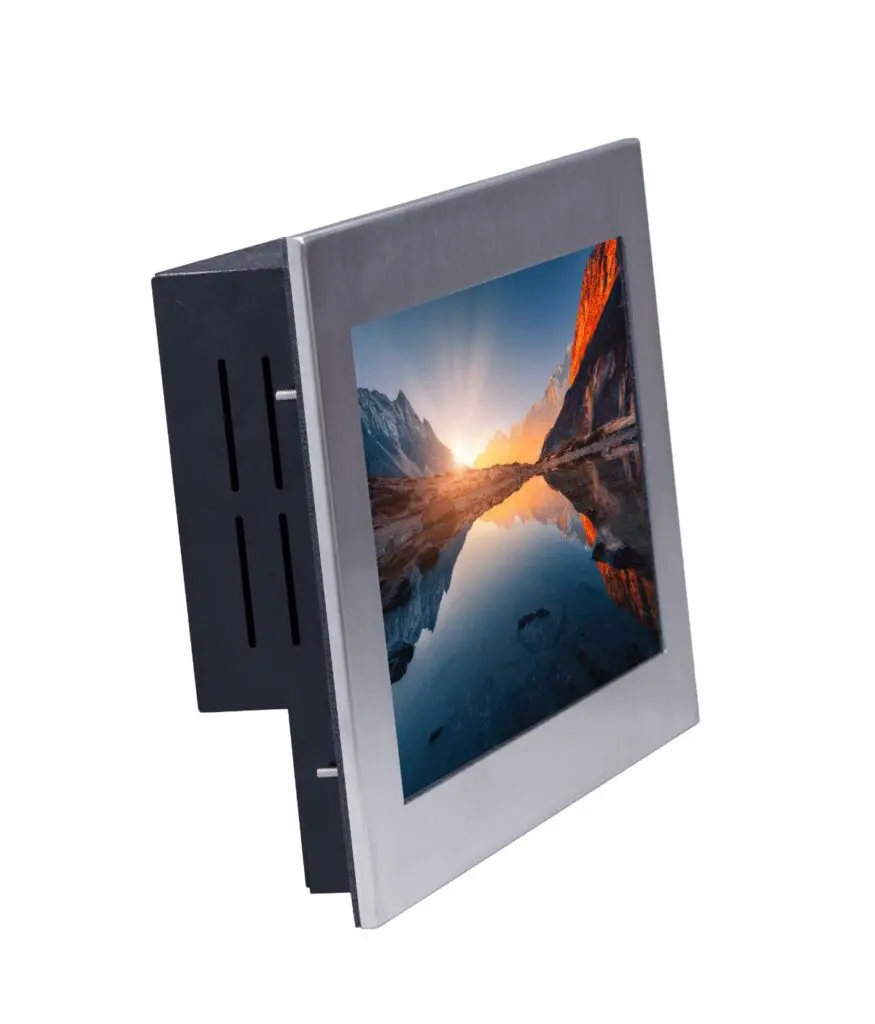

Model SRD-PS-156 is a 15.6” Full HD Sunlight Readable LCD monitor from AbraxSys, designed for high-performance operation in extreme industrial conditions. With 1500 nits brightness, a wide temperature range of -30°C to 75°C (-22°F to 167°F), and a NEMA 4X (IP66) rated panel mount enclosure, this display is built for durability. Its gasket-sealed stainless steel front bezel and corrosion-resistant aluminum rear housing ensure long-lasting reliability in environments exposed to water, dust, and caustic contaminants.

Key Features

  • 15.6” TFT LCD with 1920 × 1080 Full HD resolution
  • High brightness 1500 nits LED backlight for direct sunlight visibility
  • Wide operational temperature range: -30°C to 75°C (-22°F to 167°F)
  • NEMA 4X (IP66) rated panel mount enclosure
  • Gasket-sealed stainless steel front bezel
  • Corrosion-resistant, powder-coated aluminum rear housing
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Toughened glass protective screen
  • Engineered for demanding outdoor and industrial environments
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP66 Waterproof protection rated product feature badgeNEMA4x protection rated product feature badgeLCD screen product feature badgeLED screen product feature badge16:9 aspect ratio LCD display product feature icon1080P screen resolution LCD display product feature iconWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PS-156
Display Size
15.6"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1500 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
750:1
Aspect Ratio
16:9
Resolution
1920 x 1080 (1080p)
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 88° / 88° Horizontal, - 88° / 88° Vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
Gasket-Sealed Stainless Steel
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Weight
15 lbs. (6.8 Kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 75°C (-22°F to 167°F), Extended Operational Temperature Ranges Available
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4X - IP66

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards







Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Private Labeling Services
