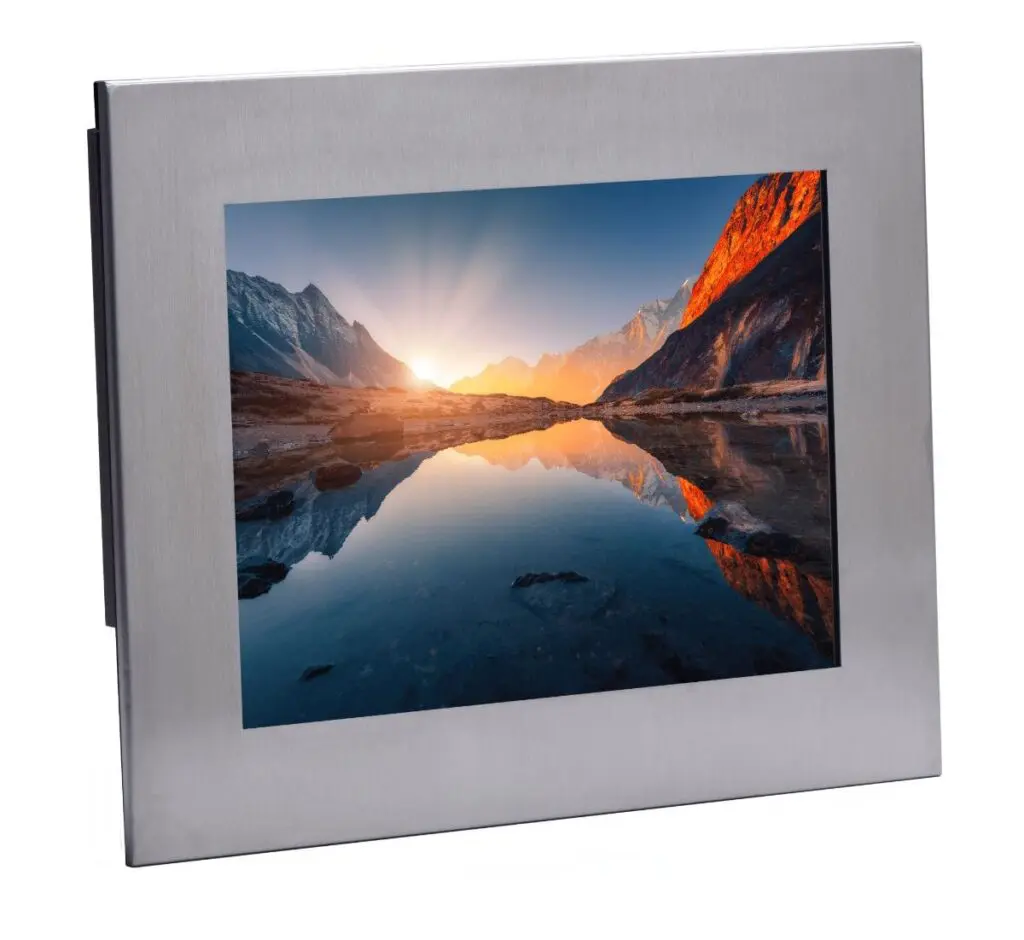

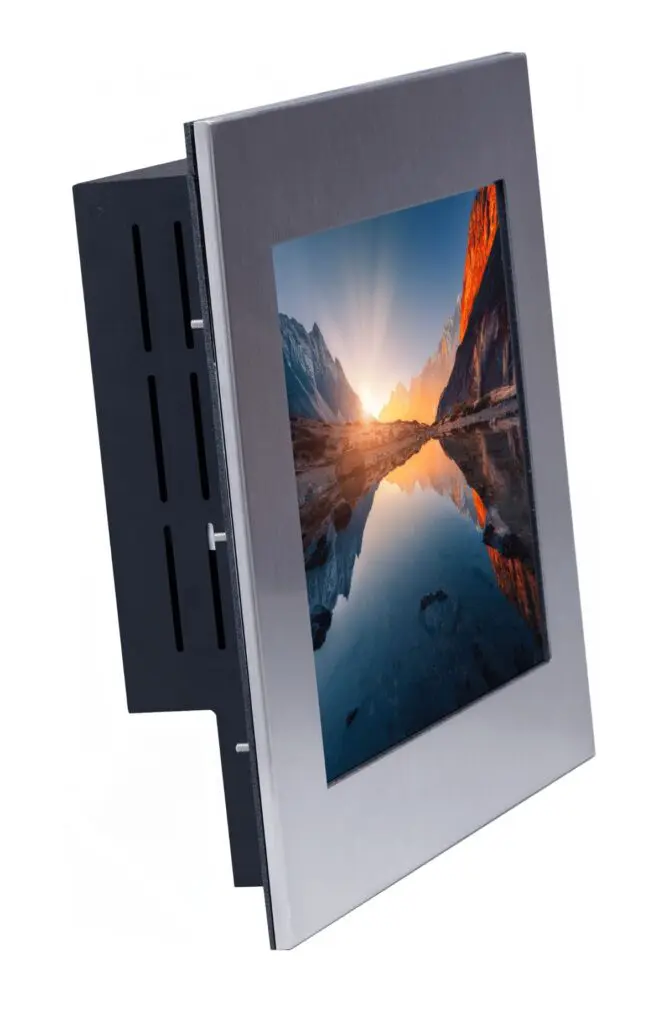

SRD-PS-150

15″ Sunlight Readable Panel Mount – NEMA 4X (IP66)

The SRD-PS-150 is a rugged 15” Daylight Readable LCD panel mount compatible monitor from AbraxSys, designed for use in harsh industrial environments. With a 1024 × 768 resolution, 1100 nits brightness (optional 1600 nits), and an 800:1 contrast ratio, this NEMA 4X (IP66) rated display offers excellent visibility and durability. Built to resist water, dust, chemicals, and caustic exposure, it’s an ideal solution for demanding outdoor applications.

Key Features

15” LCD with 1024 × 768 resolution
1100 nits brightness (optional 1600 nits available)
800:1 contrast ratio for crisp, clear visuals
NEMA 4X (IP66) rated front bezel for extreme environmental protection
Built to withstand water spray, dust, dirt, oil, and chemicals
Industrial-grade construction for rugged applications
Rigorously tested to meet industry standards
Designed for use in high ambient light and outdoor conditions

IP66 Waterproof protection rated product feature badge

Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model

SRD-PS-150

Display Size

15.0"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1600 nits (cd/m2)

Dimming Capabilities

Deep Dimming Down to Black

Contrast Ratio

800:1

Aspect Ratio

4:3

Resolution

1024 x 768 (XGA) Native

Colors Supported

16.2M

Viewing Angles

−80° ∼ 80° horizontal, −70° ∼ 80° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

Gasket-Sealed Stainless Steel

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Panel Mounting

10-32 Stainless Mounting Studs, 1/2” Exposed Thread

Overall Dimensions

13.64" x 16.50" x 2.60" (346.45 x 419.10 x 66.04mm)

Cutout

12.2” 309.88mm x 15.06” 382.53mm

Weight

13.2 lbs. (5.9 kg)

Sealability

NEMA 4X (IP66)

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 80°C (-22°F to 176°F)

Storage Temperature

-30°C to 85°C (-22°F to 185°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.

RoHS Compliant

Yes

Rating

NEMA 4X - IP66

Cutout Drawings

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, SDI, Composite, S-video, and/or NTSC/PAL

Custom Video Modes

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Extended Operational Temperature Ranges

Private Labeling Services

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Conformal Coating of all Internal Circuit Boards
