15" Panel Mount Sunlight Readable LCD Monitor NEMA 4 (IP65)

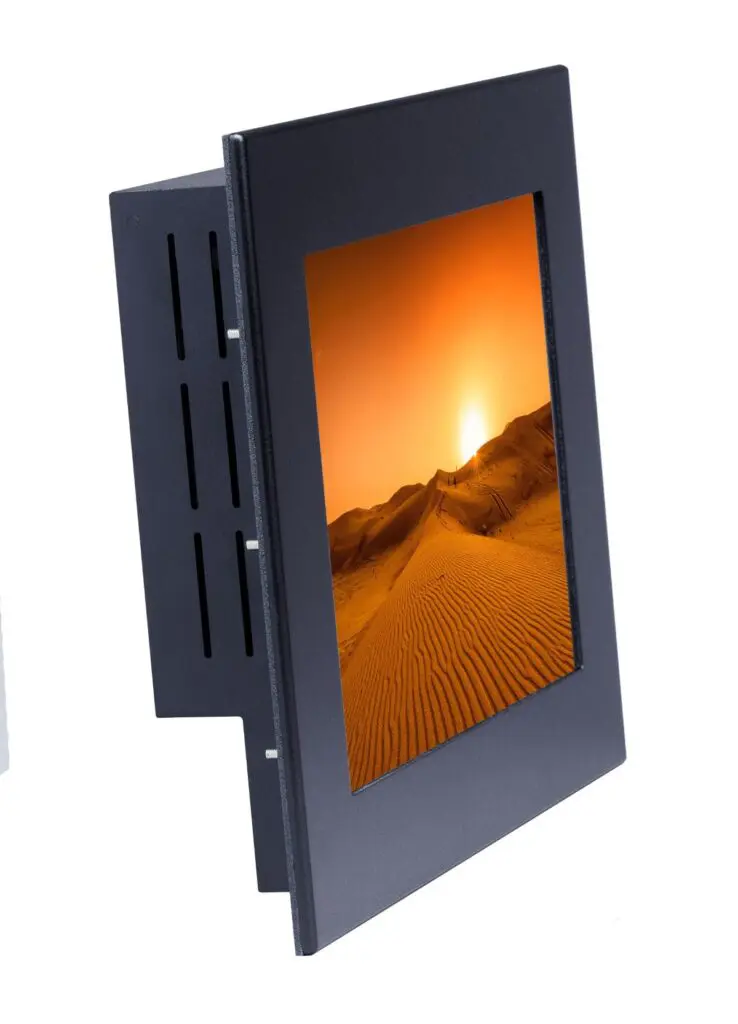

Model SRD-PM-150 is a rugged panel mount compatible 15” Daylight Readable IPS LCD monitor from AbraxSys, offering 1100 nits brightness (with an optional 1600 nits upgrade) and 800:1 contrast ratio. This NEMA 4 (IP65) panel mount display is built for demanding outdoor environments, with a durable aluminum enclosure treated for corrosion resistance. Designed with high-performance control electronics and tested to industrial standards, this monitor delivers reliable operation in harsh conditions. Touchscreen configurations include a heavy-duty .375” bezel and optically bonded, flush multi-touch glass to eliminate pooling and ensure easy cleaning.

Key Features

15” XGA IPS LCD panel with 1024 × 768 resolution
1100 nits brightness (1600 nits optional) and 800:1 contrast ratio
NEMA 4 (IP65) rated front bezel for water and dust protection
Durable aluminum enclosure with zinc-chromate and powder-coated finish
Exceptional shock and vibration resistance
Analog-Digital interface board, backlight inverter, and OSD controls
Optional projected capacitive touch with .375” thick heavy-duty bezel
Flush multi-touch glass surface for durability and easy cleaning
Long-life display with no scheduled end of life
Ideal for outdoor and industrial system integration

Technical Specifications

Model

SRD-PM-150

Display Size

15.0"

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

IPS (In-Plane Switching technology) panel, for more information click HERE

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1600 nits (cd/m2)

Dimming Capabilities

Deep Dimming Down to Black

Contrast Ratio

800:1

Aspect Ratio

4:3

Resolution

1024 x 768 (XGA) Native

Colors Supported

16.7M (8-bit/color)

Viewing Angles

−70° ∼ 80° vertical, −80° ∼ 80° horizontal

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black

Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
