SRD-PM-190

19″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

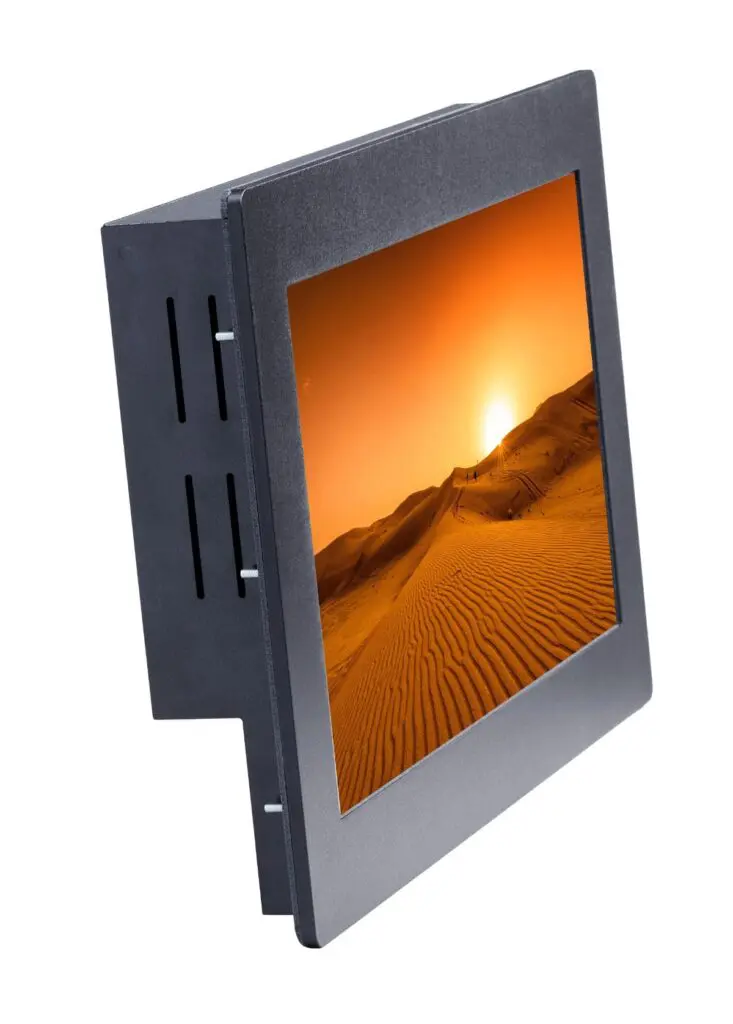

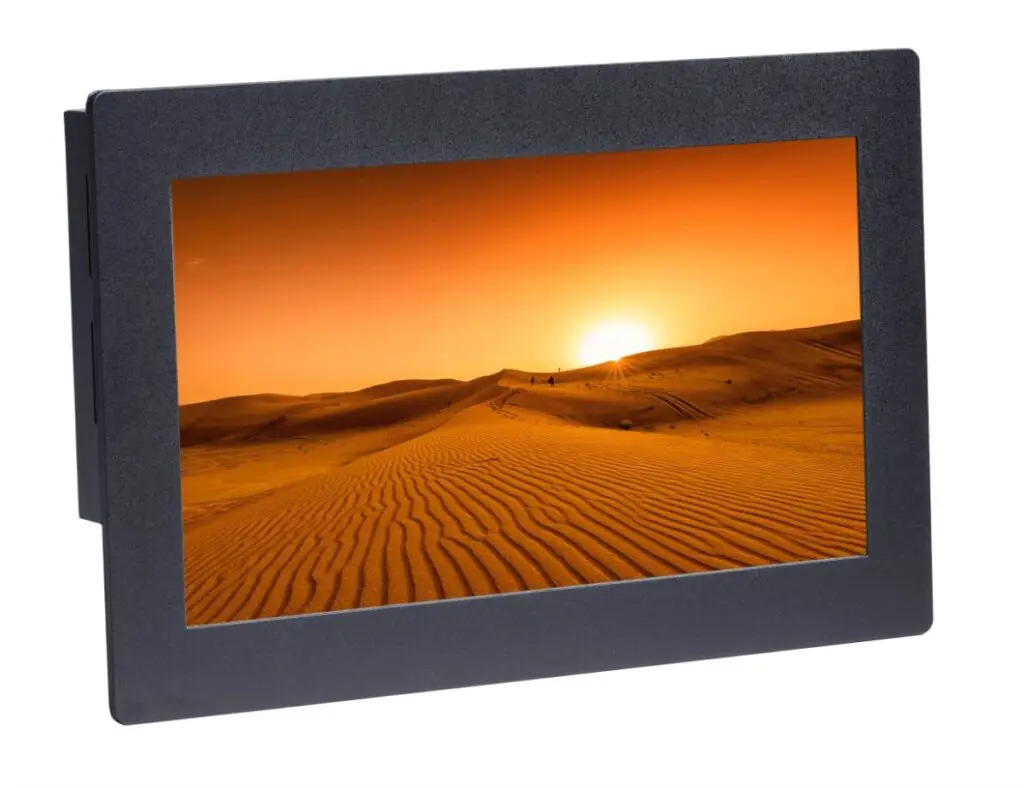

Model SRD-PM-190 is a rugged 19” Sunlight Readable LCD monitor from AbraxSys, designed to deliver maximum visibility and durability in harsh environments. With up to 1600 nits brightness, a 1280 × 1024 SXGA panel, and a 1000:1 contrast ratio, this NEMA 4 (IP65) rated unit is built for outdoor industrial use. For touch-enabled systems, an optional projected capacitive glass surface with a .375” heavy-duty bezel provides durability, easy cleaning, and reliable multi-touch control.

Key Features

  • 19” SXGA TFT LCD with 1280 × 1024 resolution
  • Up to 1600 nits high-brightness LED backlight for daylight visibility
  • 1000:1 contrast ratio for clear image performance
  • NEMA 4 (IP65) rated front bezel for water and dust protection
  • Optional projected capacitive touchscreen with flush-mounted, optically bonded glass
  • Extra heavy-duty .375” bezel for enhanced ruggedness
  • Touch surface designed to eliminate pooling and prevent touch conflict
  • Rigorously tested for industrial reliability and performance
  • Ideal for outdoor and high ambient light environments
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeRugged Industrial Monitor product feature iconWide operational temperature safety range product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PM-190
Display Size
19.0
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1600 nits (cd/m2)
Dimming Capabilities
Front Keypad (can also be configured for rear controls)
Contrast Ratio
1000:1
Aspect Ratio
5:4
Resolution
1280 x 1024 (SXGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 89 ~ 89 horizontal, - 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Overall Dimensions
19.00” [482.6mm] x 15.720” [399mm] x 2.60” [66mm]
Cutout
14.582” (370.38 mm) x 17.862” (453.69 mm)
Weight
18 lbs. (8.1 Kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 85°C (-22°F to 185°F)
Storage Temperature
-30°C to 85°C (-22°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, DisplayPort, NTSC-PAL, Composite, S-Video, and/or SDI

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4X IP66 Stainless Steel Front Bezel

Custom Video Modes

Private Labeling Services
