SRD-FVM-190

19″ Sunlight Readable VESA Mount – NEMA 4 (IP65)

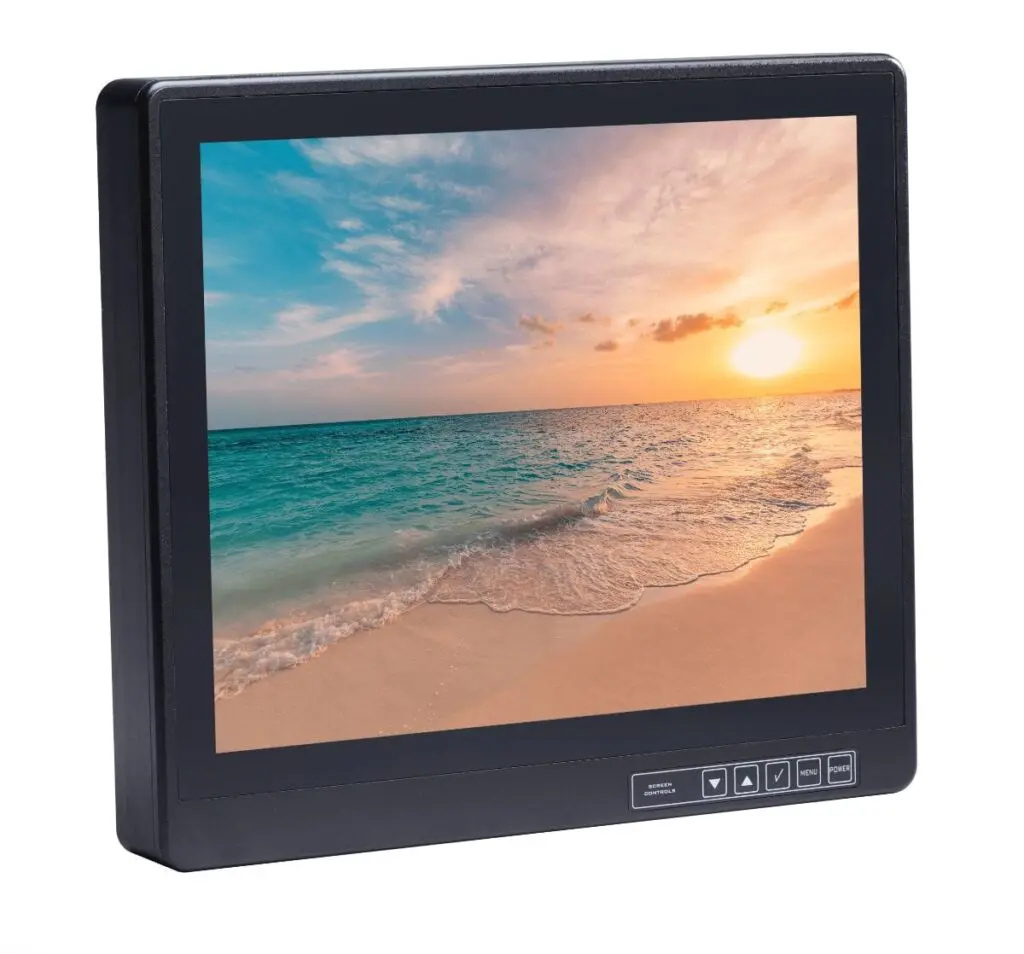

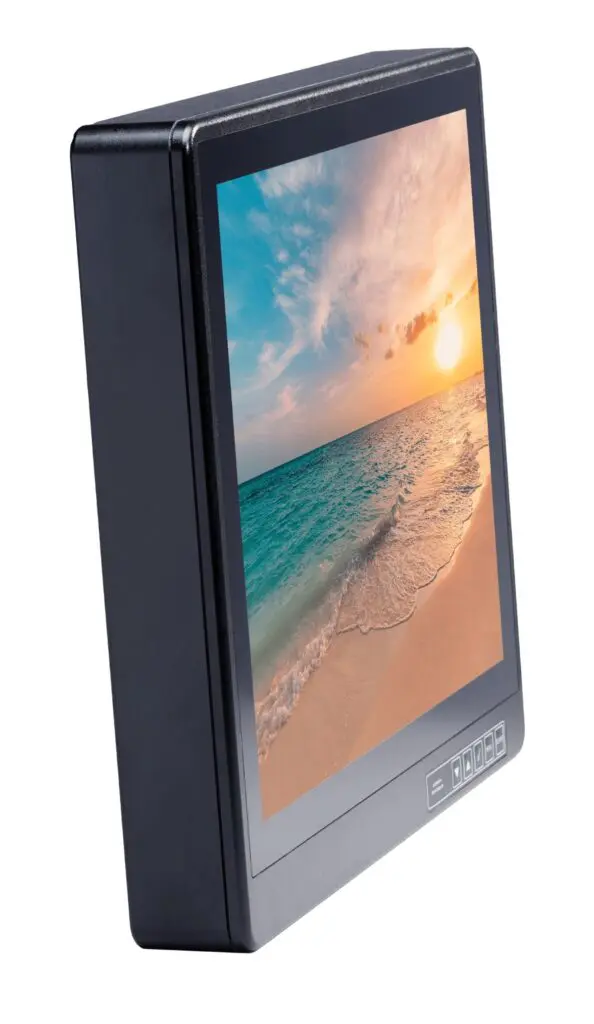

Model SRD-FVM-190 is a rugged 19” Sunlight Readable LCD monitor from AbraxSys, built to perform in high ambient light and harsh outdoor conditions. Featuring a 1280 × 1024 SXGA TFT panel, this high-brightness display is enclosed in a compact, NEMA 4 (IP65) rated metal housing with a toughened glass screen. With an integrated Analog-Digital interface, backlight inverter, and OSD controls, SRD-FVM-190 is ready for system integration as a standalone monitor or touchscreen-based HMI.

Key Features

  • 19” SXGA (1280 × 1024) TFT LCD panel
  • High-brightness, sunlight readable LED backlight
  • NEMA 4 (IP65) rated enclosure for dust and water protection
  • Toughened glass protective screen
  • Compact and rugged metal housing
  • Analog-Digital interface board, backlight inverter, and OSD controls
  • Suitable for analog monitor use or touchscreen-driven HMI
  • Tested to meet industrial standards for harsh environments
  • Ideal for outdoor applications with high ambient light exposure
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconVESA mount compatible LCD monitor product feature badgeRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-FVM-190
Display Size
19.0
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1600 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
1000:1
Aspect Ratio
5:4
Resolution
1280 x 1024 (SXGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 89 ~ 89 horizontal, - 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Overall Dimensions
19.00” [482.6mm] x 15.720” [399mm] x 2.60” [66mm]
Cutout
14.582” (370.38 mm) x 17.862” (453.69 mm)
Weight
18 lbs. (8.1 Kg)
Sealability
NEMA 4 (IP65)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 75°C (-22°F to 167°F)
Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Extended Operational Temperature Ranges

Custom Video Modes

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Conformal Coating of all Internal Circuit Boards

Private Labeling Services
