SRD-FVM-150

15″ Sunlight Readable VESA Mount – IP65

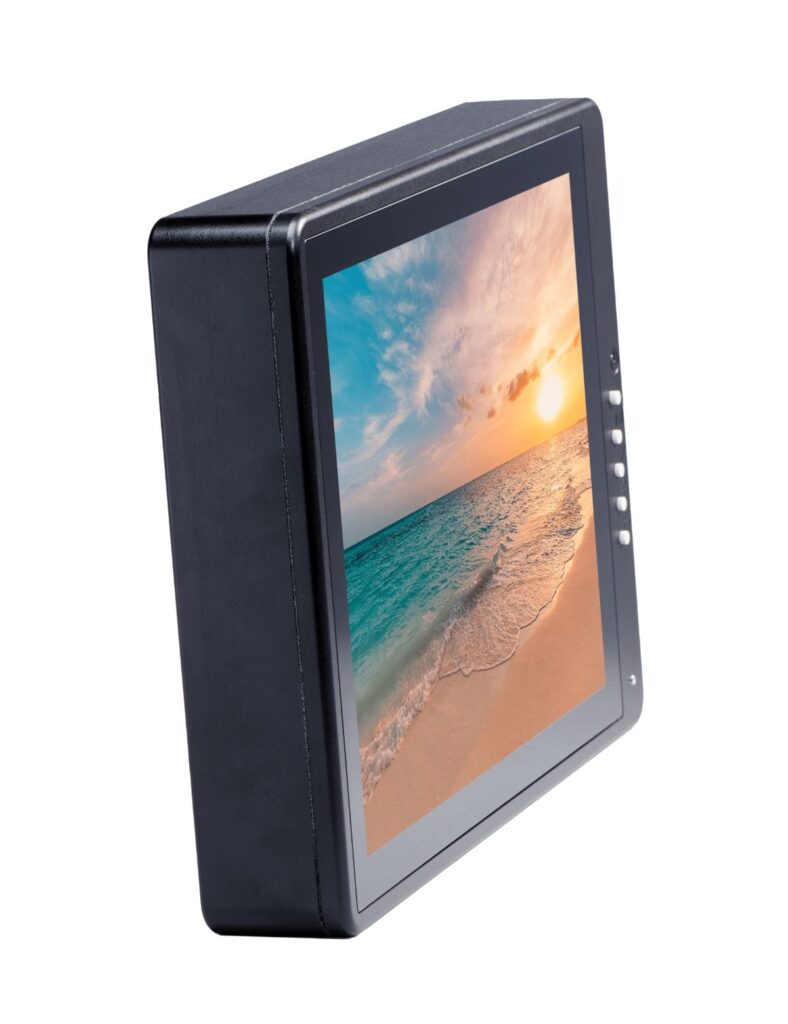

Model SRD-FVM-150 is an Ultra-Rugged, FULLY-enclosed VESA or RAM mount compatible 15” Sunlight Readable LCD monitor from AbraxSys, featuring an XGA (1024×768) 1800 nits brightness panel with wide viewing angles and high image quality. With a high-brightness display and an IP65 rated enclosure, this model is built to endure harsh-duty industrial and outdoor environments. Integrated with a toughened protective window or hardened touch screen, fully-sealed watertight connectors, it’s ready for use as a standalone display or touchscreen-driven HMI.

Key Features

  • 15” XGA TFT panel for wide-angle clarity and image stability
  • 1800 nits Sunlight readable with high-brightness LED backlight
  • IP65 rated metal enclosure for protection against dust and water intrusion
  • Toughened optical protective window or hardened touch screen
  • Rugged housing for harsh-duty operation
  • Suitable for wide operational temperature environments
  • Designed for reliable operation in outdoor and high ambient light conditions
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeVESA mount compatible LCD monitor product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Sunlight Readable Brochure Abraxsys Brochure User Manual Data Sheet

Technical Specifications

Model
SRD-FVM-150
Display Size
15.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1800 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
800:1
Aspect Ratio
4:3
Resolution
1024 x 768 (XGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
-80° ~ 80° vertical, −70° ∼ 80° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Overall Dimensions
11.098 x 15.15 x 2.37 in (281.89 x 384.81 x 60.20mm)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 80°C (-22°F to 176°F)
Storage Temperature
-30°C to 85°C (-22°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65
Mechanical Drawings
Model
SRD-FVM-150
Display Size
15.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1800 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
800:1
Aspect Ratio
4:3
Resolution
1024 x 768 (XGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
-80° ~ 80° vertical, −70° ∼ 80° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
VESA 100mm
Overall Dimensions
11.098 x 15.15 x 2.37 in (281.89 x 384.81 x 60.20mm)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 80°C (-22°F to 176°F)
Storage Temperature
-30°C to 85°C (-22°F to 185°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology





Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards

Optical Bonding

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Custom Video Modes

Private Labeling Services
