SRD-PM-170

17″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

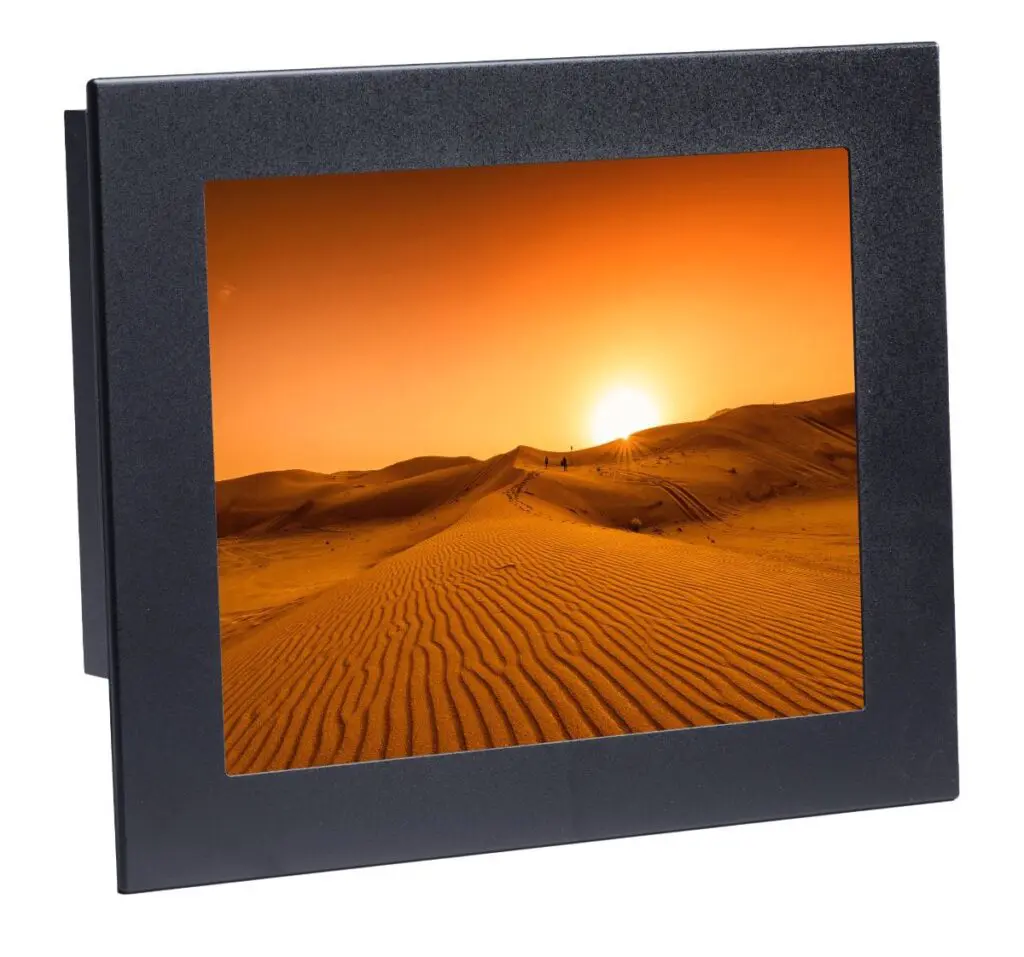

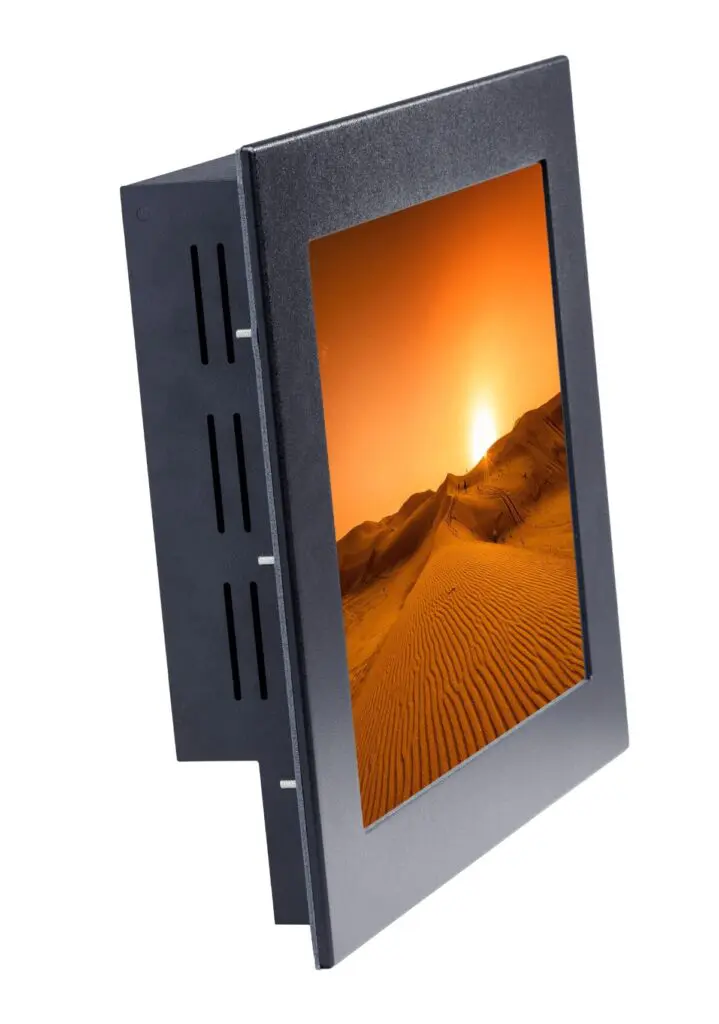

Model SRD-PM-170 is a rugged 17” Daylight Readable LCD monitor from AbraxSys, engineered for high visibility in direct sunlight and harsh industrial environments. Featuring 1000 nits brightness, 1280 × 1024 resolution, and a 1000:1 contrast ratio, this NEMA 4 (IP65) rated panel mount display offers durable protection against water, dust, and debris. An optional projective capacitive touch configuration includes a heavy-duty .375” bezel and flush, optically bonded glass for easy cleaning and reliable multi-touch performance in contamination-prone settings.

Key Features

  • 17” LCD with 1280 × 1024 (SXGA) resolution
  • 1000 nits high-brightness LED backlight for sunlight readability
  • 1000:1 contrast ratio for crisp image clarity
  • NEMA 4 (IP65) rated front bezel for protection from water and dust
  • Optional PCAP touchscreen with flush, optically bonded 2-point multi-touch glass
  • Heavy-duty .375” thick bezel for enhanced durability in touch configurations
  • Easy-to-clean surface with no pooling around the touch area
  • Designed for performance in high ambient light and outdoor environments
  • Built for rugged industrial use, tested to meet strict industry standards
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged and protective design for hazardous and industrial conditions product feature badgeTouchscreen product feature badgeEnergy efficient LCD Monitor product feature badge
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PM-170
Display Size
17.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

IPS (In-Plane Switching technology) panel, for more information click HERE

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black, Automatic Dimming Sensor, Front Keypad (can also be configured for rear controls), or Remote Dimming, or Manual Full-Range Dimming Turn Pot
Contrast Ratio
1000:1
Aspect Ratio
5:4
Resolution
1280 x 1024 (SXGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
−70° ∼ 80° vertical, −80° ∼ 80° horizontal
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
Multi-Functional User Keypad
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless Mounting Studs, 1/2” Exposed Thread
Overall Dimensions
15.88 x 13.34 x 2.08 in (403.4 x 338.8 x 52.8 mm)
Cutout
13.56” (344.4 mm) x 16.56” (420.6 mm)
Weight
18 lbs. (8.1 Kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 70°C (-22°F to 158°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology



Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, DisplayPort, NTSC-PAL, Composite, S-Video, and/or SDI

Conformal Coating of all Internal Circuit Boards

Private Labeling Services

Extended Operational Temperature Ranges

Customization Services

Custom Video Modes

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4X IP66 Stainless Steel Front Bezel
