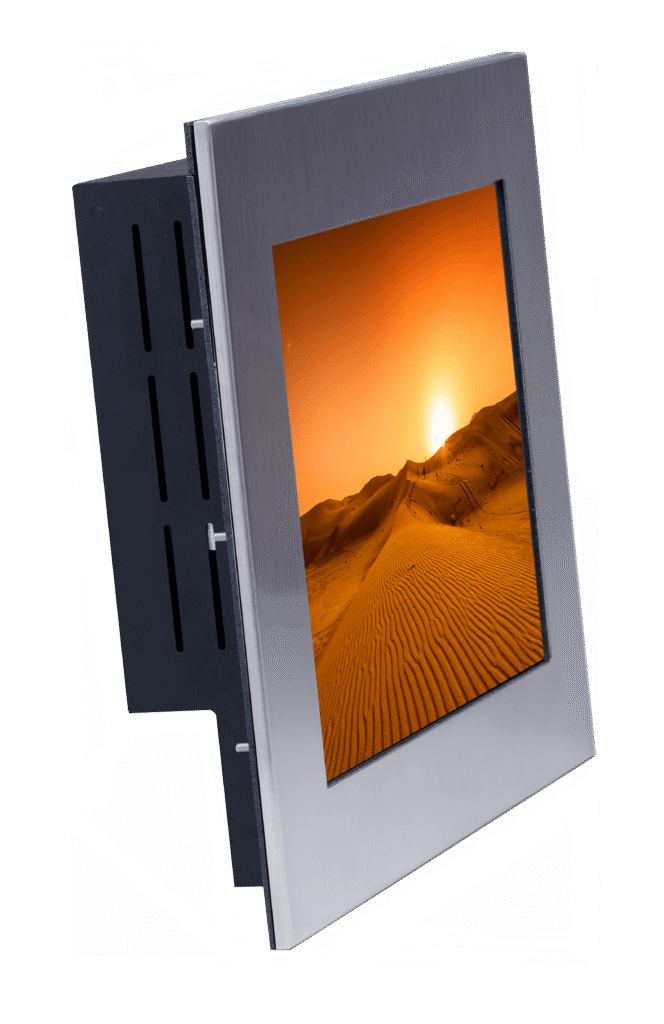

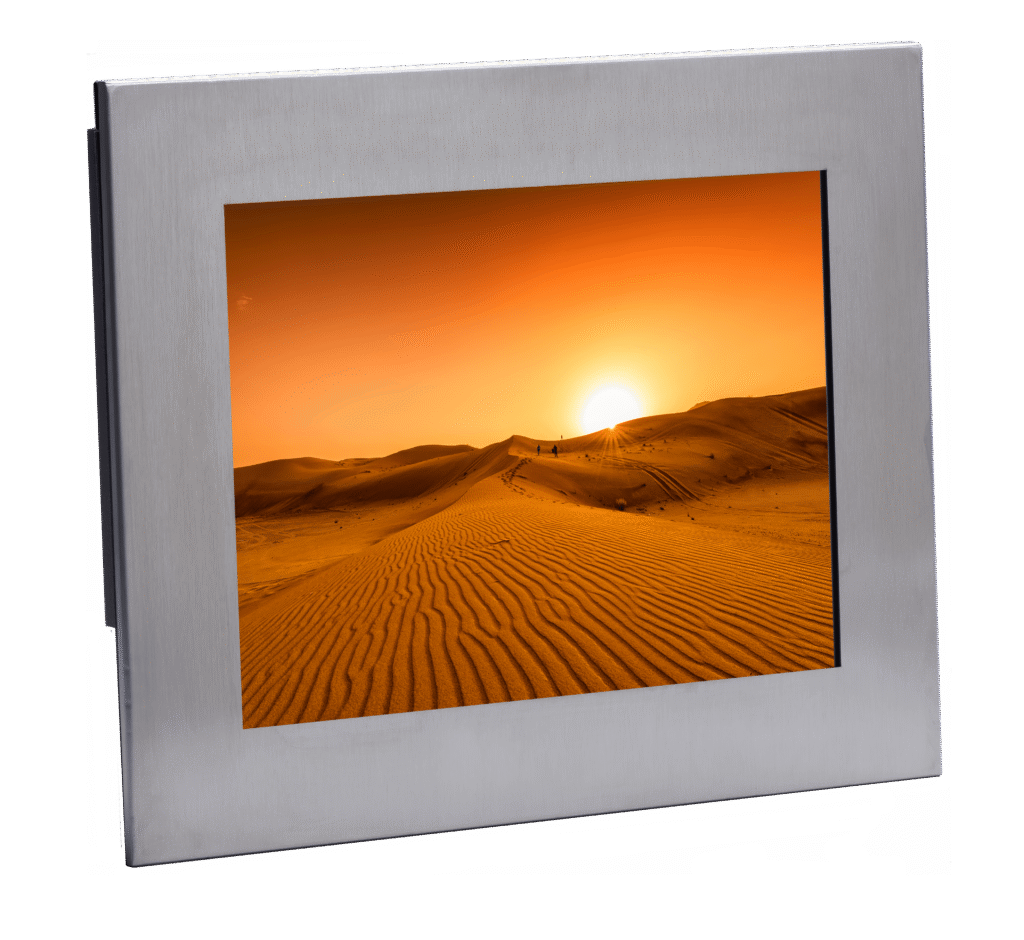

SRD-PS-170

17″ Sunlight Readable Panel Mount – NEMA 4 (IP66)

Model SRD-PS-170 is a rugged 17” Sunlight Readable LCD monitor from AbraxSys, purpose-built for use in environments exposed to dust, moisture, and caustic elements. With a high-brightness 1200 nits LED backlight, 1280 × 1024 resolution, and a 1000:1 contrast ratio, this industrial-grade display ensures clear visibility in direct sunlight. The NEMA 4X (IP66) rated front bezel offers robust protection against water, spray, and harsh contaminants, making it an ideal solution for outdoor and demanding applications.

Key Features

  • 17” LCD with 1280 × 1024 (SXGA) resolution
  • 1200 nits high-brightness LED backlight for daylight readability
  • 1000:1 contrast ratio for sharp image quality
  • NEMA 4X (IP66) rated front bezel for superior resistance to water, dust, and chemicals
  • Designed for harsh industrial environments and outdoor applications
  • Engineered to exceed performance of commercial-grade displays
  • Rigorously tested to meet industry standards
  • Ideal for high ambient light conditions and contamination-prone settings
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP66 Waterproof protection rated product feature badgeNEMA4x protection rated product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PS-170
Display Size
17.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Contrast Ratio
1000:1
Aspect Ratio
5:4
Resolution
1280 x 1024 (SXGA) Native
Colors Supported
16.7M (8-bit/color)
Viewing Angles
- 89 ~ 89 horizontal, - 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls
or Remote Dimming, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, Rear Keypad (can also be configured for rear controls
Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
Gasket-Sealed Stainless Steel
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless Mounting Studs, 1/2” Exposed Thread
Overall Dimensions
15.88 x 13.34 x 2.08 in (403.4 x 338.8 x 52.8 mm)
Cutout
13.56” (344.4 mm) x 16.56” (420.6 mm)
Weight
18 lbs. (8.1 Kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 70°C (-22°F to 158°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.
RoHS Compliant
Yes
Rating
NEMA 4X - IP66

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology



Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, DisplayPort, NTSC-PAL, Composite, S-Video, and/or SDI

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards

Custom Video Modes







Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Private Labeling Services
