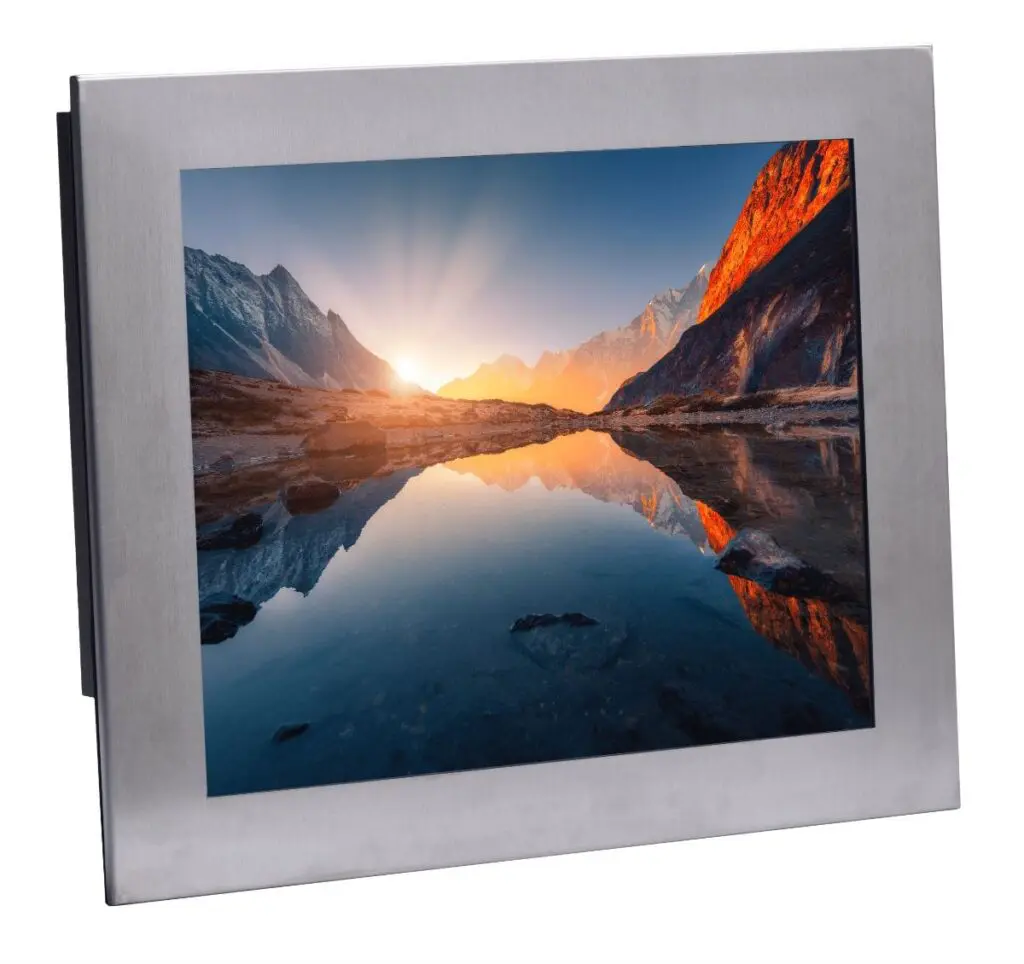

SRD-PS-190

19″ Sunlight Readable Tabletop – NEMA 4X (IP66)

Model SRD-PS-190 is a rugged 19” Sunlight Readable LCD monitor from AbraxSys, designed for industrial environments with exposure to water, dust, oil, and chemicals. Featuring a 1280 × 1024 SXGA resolution, a brightness range of 1000 to 1500 nits, and a 1000:1 contrast ratio, this display delivers excellent visibility in direct sunlight. Its NEMA 4X (IP66) rated front bezel ensures reliable protection in the harshest operating conditions.

Key Features

19” SXGA TFT LCD with 1280 × 1024 resolution
High-brightness LED backlight: 1000 to 1500 nits range
1000:1 contrast ratio for sharp image performance
NEMA 4X (IP66) rated front bezel for maximum protection from water, dust, and contaminants
Built for rugged outdoor and industrial environments
Rigorously tested to exceed standard commercial-grade display performance
Ideal for high ambient light and direct sun conditions

IP66 Waterproof protection rated product feature badge

Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model

SRD-PS-190

Display Size

19.0

Display Type

Long-Life Industrial Grade Active Matrix TFT LCD

Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1600 nits (cd/m2)

Contrast Ratio

1000:1

Aspect Ratio

5:4

Resolution

1280 x 1024 (SXGA) Native

Colors Supported

16.7M (8-bit/color)

Viewing Angles

- 89 ~ 89 horizontal, - 88° / 88° Vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite

User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Front Bezel

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Panel Mounting

10-32 Stainless mounting studs, 1/2” exposed thread

Overall Dimensions

19.00” [482.6mm] x 15.720” [399mm] x 2.60” [66mm]

Cutout

14.582” (370.38 mm) x 17.862” (453.69 mm)

Weight

18 lbs. (8.1 Kg)

Sealability

NEMA 4X (IP66)

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 85°C (-22°F to 185°F)

Storage Temperature

-30°C to 85°C (-22°F to 185°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.

RoHS Compliant

Yes

Rating

NEMA 4X - IP66

Cutout Drawings

Mechanical Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Hardened Armored Touch Technology

Video Input Options: DVI, HD15 (VGA), DisplayPort, HDMI, Composite, S-Video, SDI, and/or NTSC-PAL

Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Custom Video Modes

Extended Operational Temperature Ranges

Private Labeling Services

Customization Services

Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Conformal Coating of all Internal Circuit Boards
