SRD-PM-240

24″ Sunlight Readable Panel Mount – NEMA 4 (IP56/IP65)

AbraxSys Industrial LCD Flat Panel Displays are ideally suited for various harsh environments where dust, dirt, moisture, splashing water, hose directed spray, and various other caustic contaminants like oil, chemicals, etc.

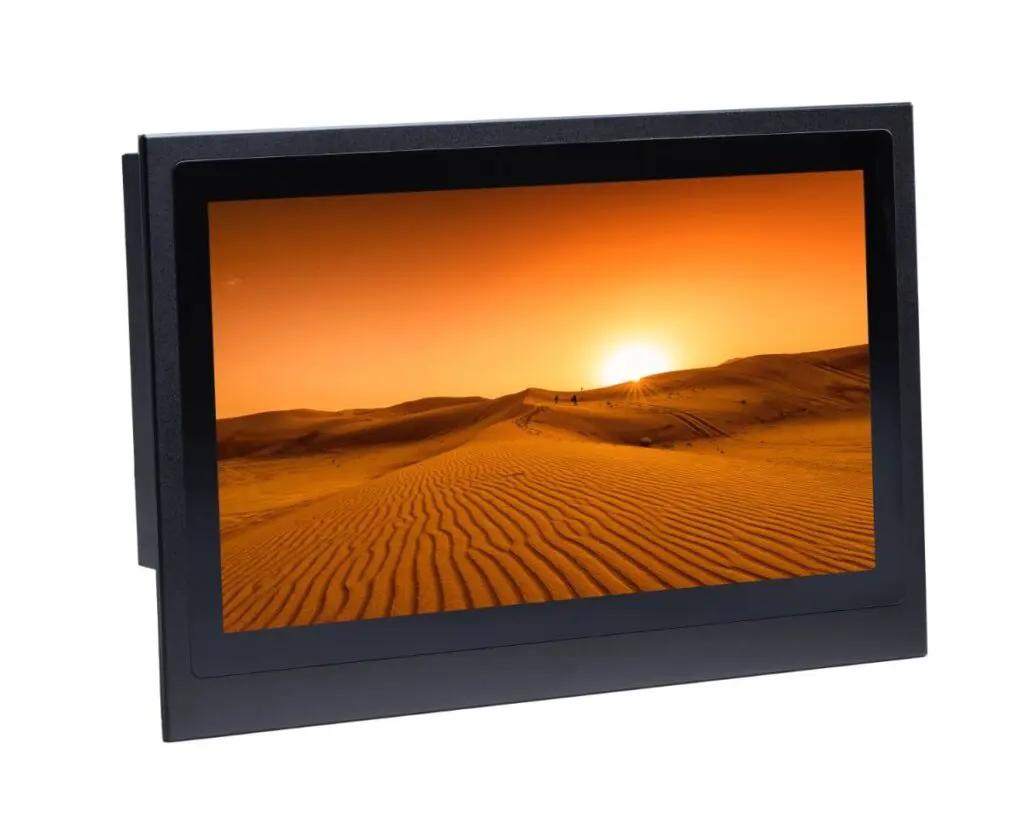

Model SRD-PM-240 is a high-quality industrial LCD system offering NEMA 4 (IP65) level protection at the front bezel. The product boasts a 24″ display size with 1920 x 1080 (hi-def) pixels (16:9 aspect ratio), 1400 nits brightness and 5000:1 contrast ratio.  There is also an option for a 16:10 configuration with WUXGA resolution (1920×1200).  The unit is constructed a black powder-coated gasket-sealed front bezel with “bolt” mounting. This product is very ruggedly built, features long-life displays with no scheduled End Of Life. Incorporating the latest LCD and control electronics you are assured a display the will perform reliably in harsh industrial environments.

3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badge1080P screen resolution LCD display product feature icon16:9 aspect ratio LCD display product feature iconWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PM-240
Display Size
24.0"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED, with Light Source Redundancy

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1400 nits (cd/m2)
Dimming Capabilities
Front Keypad (can also be configured for rear controls)
Contrast Ratio
5000:1
Aspect Ratio
16:9, 16:10
Resolution
1920 x 1080 (1080p), 1920 x 1200 (WUXGA)
Colors Supported
16 million
Viewing Angles
- 89 ~ 89 horizontal, - 89° ~ 89° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

Protective Window

3mm Sparkle Free Front Protective Impact Window or Projected Capacitive Touch Screen

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless Mounting Studs, 1/2” Exposed Thread
Overall Dimensions
16.6134” (421.98 mm) x 24.2674” (616.39 mm) x 3.127” (79.43 mm)
Cutout
15.53” (394.46 mm) x 23.08” (586.23 mm)
Weight
20 lbs (9.07 kg)
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-20°C to +70°C (158°F)
Storage Temperature
-30°C to 80°C (-22°F to 176°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10, 000 ft. / Storage 0 to 40, 000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65
16:9
1920 x 1080
Cutout Drawings
16:9
1920 x 1080
Mechanical Drawings
16:10
1920 x 1200
Mechanical Drawings
16:10
1920 x 1200
Cutout Drawings

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch Up to 10-Point PCAP

Hardened Armored Touch Technology



Power Type Choices: 90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Video Input Options: DVI, HD15 (VGA), HDMI, DisplayPort, NTSC-PAL, Composite, S-Video, and/or HD-SDI

Conformal Coating of all Internal Circuit Boards

Custom Video Modes

Extended Operational Temperature Ranges

Customization Services

Dimming Capabilities: Standard, or Optional Full-Range Manual Turn-Pot, Automatic Dimming Sensor, Remote Dimming

Optical Bonding

Private Labeling Services
