SRD-PM-084

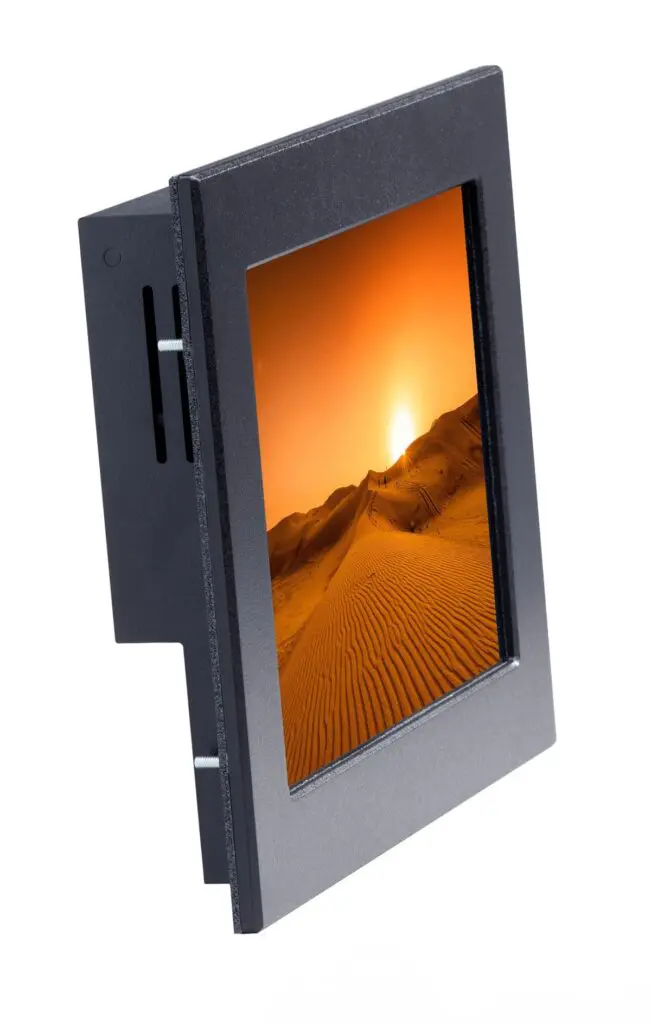

8.4″ Sunlight Readable Panel Mount – NEMA 4 (IP65)

Model SRD-PM-084 is an ultra-rugged 8.4” Sunlight Readable LCD monitor from AbraxSys, built for high performance in outdoor and industrial environments. With 1300 nits brightness, 800 × 600 resolution, and a 700:1 contrast ratio, this compact display delivers clear visibility in direct sunlight. Housed in a NEMA 4 (IP65) rated enclosure, it offers durable protection against water, dust, and debris—making it an ideal solution for harsh application settings.

Key Features

  • 8.4” TFT LCD with 800 × 600 resolution
  • 1300 nits high-brightness LED backlight for daylight readability
  • 700:1 contrast ratio for enhanced visual clarity
  • NEMA 4 (IP65) rated front bezel for dust and water resistance
  • Second-generation design for enhanced performance and durability
  • Built for rugged environments including outdoor and industrial use
  • Rigorously tested to exceed commercial-grade standards
  • Ideal for high ambient light applications and compact system integration
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP65 Waterproof lcd monitor product feature badgeNEMA4 certified LCD monitor product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy efficient LCD Monitor product feature badge
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PM-084
Display Size
8.4"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
750:1
Aspect Ratio
4:3
Resolution
800 x 600
Colors Supported
16.7M (8-bit/color)
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort
User Controls
Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming), Deep Dimming Down to Black
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE
(also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Overall Dimensions
8.939" x 10.624" x 2.070"
Cutout
9.28” (235.8mm) x 7.78” (197.7mm)
Weight
8 lbs
Sealability
NEMA 4 (IP65)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 80°C (-22°F to 176°F)
Storage Temperature
-30°C to 80°C (-22°F to 176°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch 2-Point Resistive

Hardened Armored Touch Technology

Video Input Options: DVI, HD15 (VGA), DisplayPort, and/or HDMI

Custom Video Modes

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards

Private Labeling Services

Customization Services

Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

NEMA 4X (IP66) Stainless Steel Front Bezel
