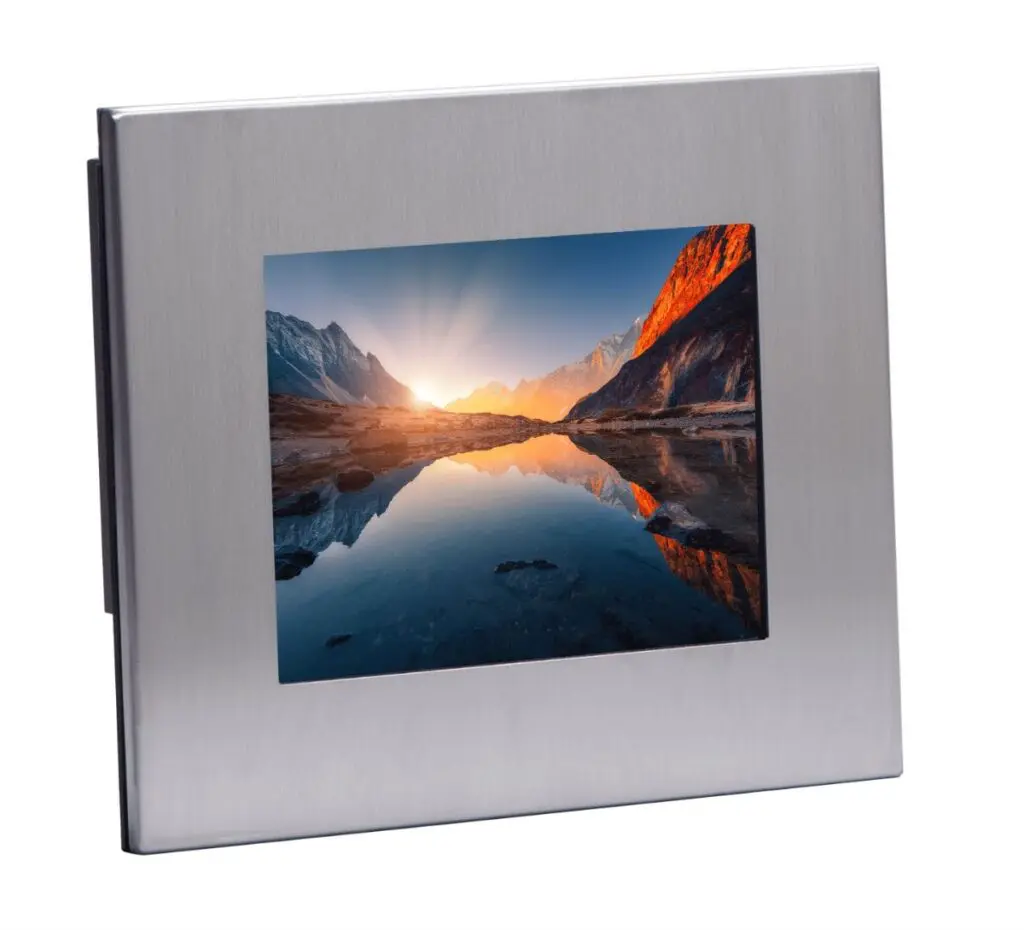

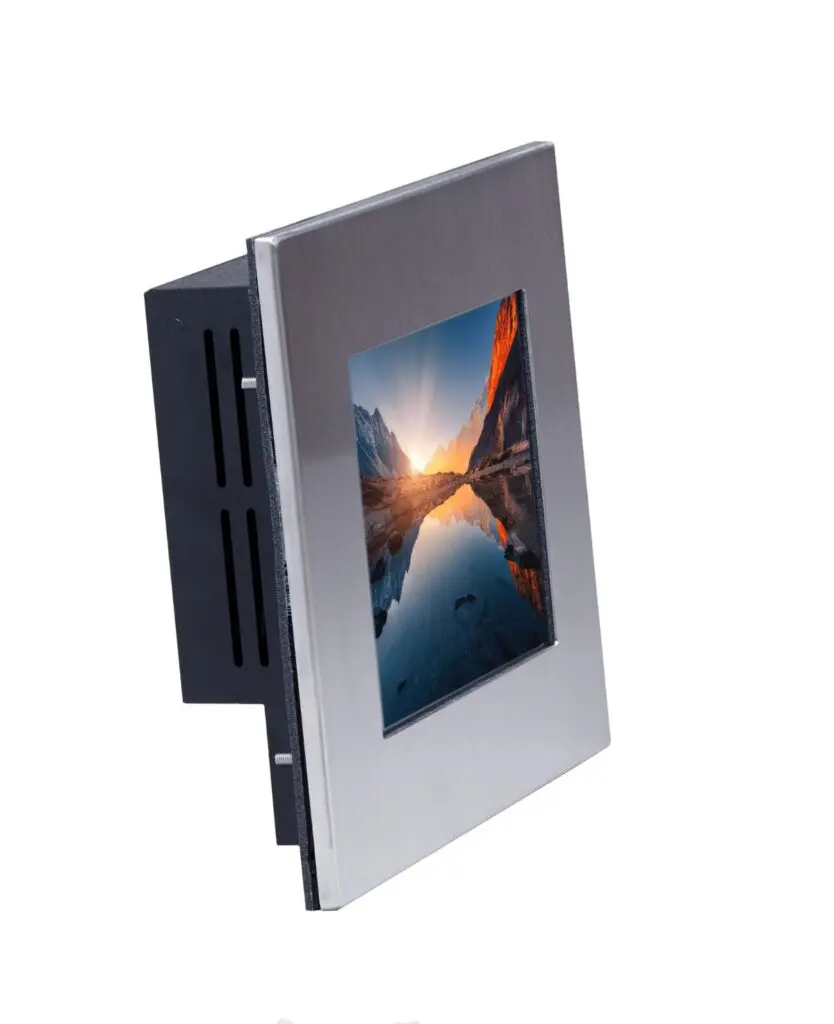

SRD-PS-084

8.4″ Sunlight Readable Panel Mount – NEMA 4X (IP66)

Model SRD-PS-084 is a rugged 8.4” Sunlight Readable LCD monitor from AbraxSys, engineered for industrial environments exposed to water, dust, chemicals, and other harsh contaminants. With 1200 nits brightness, 800 × 600 resolution, and a 750:1 contrast ratio, this display ensures excellent visibility in direct sunlight. Its NEMA 4X (IP66) rated front bezel provides reliable protection in washdown and outdoor applications, making it ideal for high ambient light conditions.

Key Features

  • 8.4” TFT LCD with 800 × 600 resolution
  • 1200 nits high-brightness LED backlight for daylight visibility
  • 750:1 contrast ratio for enhanced image definition
  • NEMA 4X (IP66) rated front bezel for waterproof and contaminant protection
  • Built for outdoor and industrial environments with exposure to oil, moisture, and spray
  • Rigorously tested to meet strict industry standards
  • Performs beyond typical commercial-grade monitors
  • Ideal for compact systems requiring rugged, high-brightness displays
3 Year Warranty product feature iconSunlight readable monitor for high visibility industrial use product feature badgeIP66 Waterproof protection rated product feature badgeNEMA4x protection rated product feature badgeLCD screen product feature badgeLED screen product feature badgeWide operational temperature safety range product feature iconRugged Industrial Monitor product feature iconImpact Protection/Resistance LCD Monitor product feature iconTouchscreen product feature badgeEnergy Efficient LCD Monitor product feature icon
Product Brochure User Manual Data Sheet Quick Quote

Technical Specifications

Model
SRD-PS-084
Display Size
8.4"
Display Type
Long-Life Industrial Grade Active Matrix TFT LCD
Backlight Technology

Solid State, Long-Life LED – CLICK HERE for more information

Brightness
1200 nits (cd/m2)
Dimming Capabilities
Deep Dimming Down to Black
Contrast Ratio
750:1
Aspect Ratio
4:3
Resolution
800 x 600
Colors Supported
16.7M (8-bit/color)
Viewing Angles
−85° ∼ 85° horizontal, −85° ∼ 85° vertical
Video Inputs
DVI, HD15 (VGA), HDMI, DisplayPort
User Controls

Front Keypad (can also be configured for rear controls, or Manual Full-Range Dimming Turn Pot, Automatic Dimming Sensor, or Remote Dimming)

, Can be repositioned on the rear of the enclosure
Protective Window

3mm Hardened Protective Window, for more information CLICK HERE (also available various optional Touch Screen Technologies)

Power Types
90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC
Front Bezel
Stainless Steel
Rear Enclosure
High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595
Panel Mounting
10-32 Stainless mounting studs, 1/2” exposed thread
Overall Dimensions
8.939" x 10.624" x 2.070"
Cutout
9.28” (235.8mm) x 7.78” (197.7mm)
Weight
8 lbs
Sealability
NEMA 4X (IP66)
Sunlight Readability
The latest optical technology for high ambient light conditions
Warranty Period
3 Years
Sunlight Readability
The latest optical technology for high ambient light conditions
Operating Temperature Range
-30°C to 80°C (-22°F to 176°F)
Storage Temperature
-30°C to 80°C (-22°F to 176°F)
Humidity
5% to 95% RH (non-condensing)
Shock
Operating: 30g’s, 11ms, ½ Sine
Vibration
1g RMS 20-500Hz
Fasteners
Vibration-proof, self-locking, fastener system
EMI
FCC Class B pursuant to Part 15 of the FCC Rules
Agency Compliance
CE
Altitude
Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.
RoHS Compliant
Yes
Rating
NEMA 4 / IP65

Additional Add-On Options

Touch Screen Technology:

Resistive

Multi-Touch 2-Point Resistive

Hardened Armored Touch Technology

Video Input Options: DVI, HD15 (VGA), DisplayPort, and/or HDMI

Custom Video Modes

Extended Operational Temperature Ranges

Conformal Coating of all Internal Circuit Boards





Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

NEMA 4 IP65 Black Powder-Coated Aluminum Front Bezel

Customization Services

Private Labeling Services
