SRD-CM-150

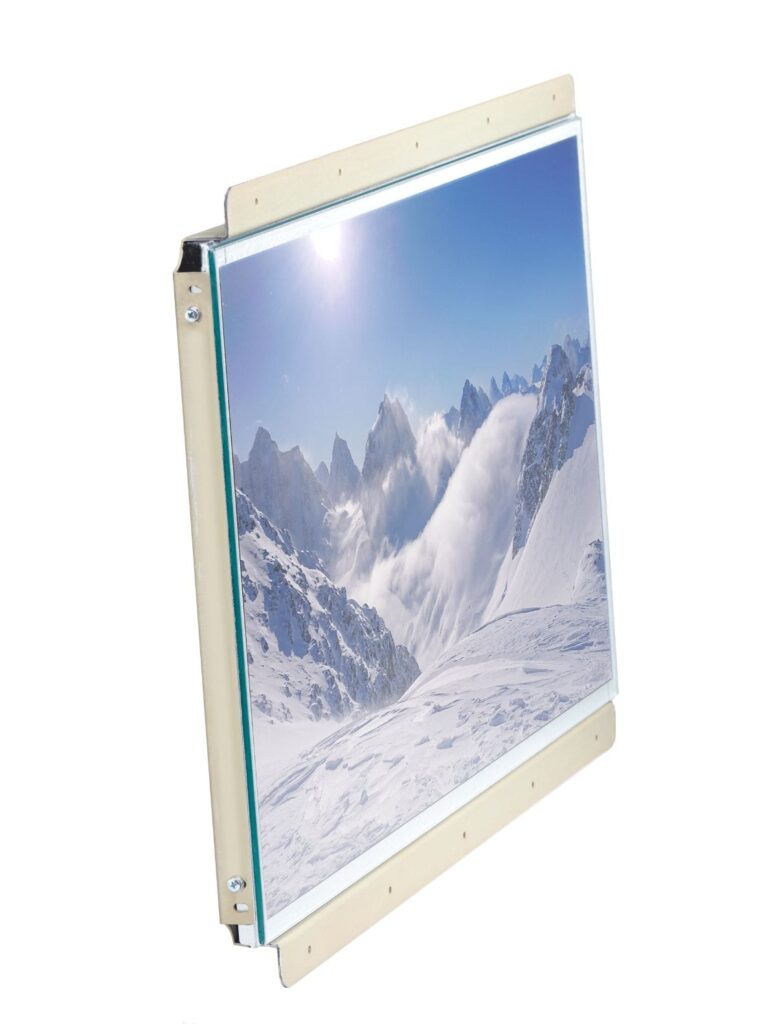

15″ Sunlight Readable Open Frame Chassis Mount

Model SRD-CM-150 is a true Daylight Readable 15” LCD monitor from AbraxSys, built in an open-frame configuration for seamless integration into kiosks, automation systems, and custom enclosures. Featuring 1600 nits brightness, 1024 × 768 resolution, and an 800:1 contrast ratio, this high-performance display delivers vivid clarity in direct sunlight. Engineered with rugged, zinc-chromate treated aluminum, it’s designed to withstand shock, vibration, and severe outdoor conditions.

Key Features

15” LCD with 1024 × 768 resolution
1600 nits brightness and 800:1 contrast ratio for true daylight readability
Open-frame design ideal for kiosk and OEM integration
Rugged aluminum construction, zinc-chromate dipped for durability
Exceptional resistance to shock, vibration, and harsh environments
Long-life display with no scheduled end of life
Incorporates latest LCD and control electronics for industrial reliability
Built for use in high ambient light and direct sun exposure

Product Brochure Data Sheet Quick Quote

Technical Specifications

Model

SRD-CM-150

Display Size

15.0"

Display Type

Long-Life Industrial Grade LCD

Backlight Technology

Long-Life Industrial Grade Active Matrix TFT LCD

Optical Films Enhancements

Boosts efficiency of the backlight’s light utilization and minimizes the surface reflection of ambient light. The result is a transmissive enhancement that features higher contrast and a wider range of colors, even in bright outdoor light, than traditional reflective LCDs.

Brightness

1600 nits (cd/m2)

Dimming Capabilities

Dimming Capabilities: User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

Contrast Ratio

800:1

Aspect Ratio

4:3

Resolution

1024 x 768 (XGA) Native

Colors Supported

16.7M (8-bit/color)

Viewing Angles

−80° ∼ 80° horizontal, −70° ∼ 80° vertical

Video Inputs

DVI, HD15 (VGA), HDMI, DisplayPort, S-Video, SDI, Composite

User Controls

User Keypad (standard); Optional: Manual Full-Range, Automatic Dimming, or Remote Dimming

Protective Window

3mm Hardened Protective Window, for more information CLICK HERE (also available various optional Touch Screen Technologies)

Power Types

90 VAC to 264 VAC; 12V DC; 24V DC; 9 to 36V DC; or 20 to 53V DC

Rear Enclosure

High Grade 6061T Aluminum, Electrochemical Anodized for added Corrosion Resistance, Black Textured Finish per Military Standards FED-STD-595

Overall Dimensions

See Drawings

Weight

See Drawings

Sunlight Readability

The latest optical technology for high ambient light conditions

Warranty Period

3 Years

Sunlight Readability

The latest optical technology for high ambient light conditions

Operating Temperature Range

-30°C to 80°C (-22°F to 176°F)

Storage Temperature

-30°C to 85°C (-22°F to 185°F)

Humidity

5% to 95% RH (non-condensing)

Shock

Operating: 30g’s, 11ms, ½ Sine

Vibration

1g RMS 20-500Hz

Fasteners

Vibration-proof, self-locking, fastener system which will not loosen regardless of seat torque. Designed to help make products safer, lower warranty costs and prolong equipment life by eliminating vibration; increased safety, reliability, operating life and reduced maintenance.

EMI

FCC Class B pursuant to Part 15 of the FCC Rules

Agency Compliance

Altitude

Operating 0 to 10,000 ft. / Storage 0 to 40,000 ft.

RoHS Compliant

Yes
